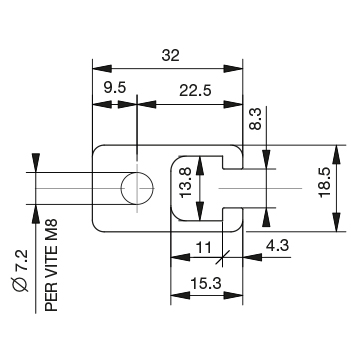

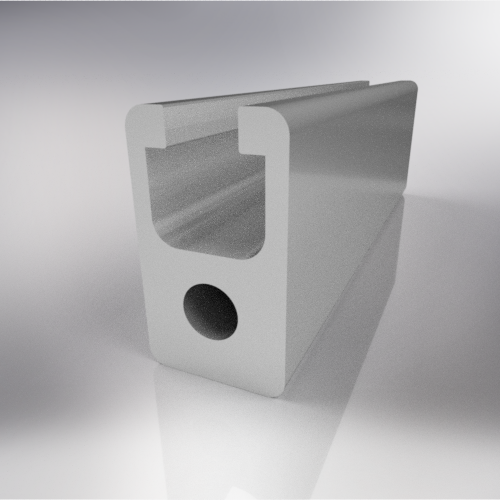

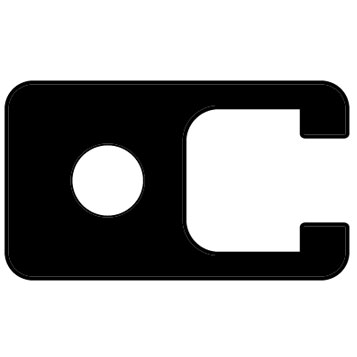

Profile 18,5x32 – 1 Way

Code:
BPRDD0000007
Old Code:
01.3218,5.1A
Serie:
45
Area:
366 mm2
Bar length:
6040 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
1,51 Wx/cm3 – 1,52 Wy/cm3
Moment of inertia:
1,39 Jx/cm4 – 2,93 Jy/cm4
Weight:
0,988 kg/ml
Profilo 18,5×32 – 1 cava - BPRDD0000007
Profilo 18,5×32 – 1 cava
Profilo 18,5×32 – 1 cava
Profilo 18,5×32 – 1 cava - BPRDD0000007
Profilo 18,5×32 – 1 cava
Profilo 18,5×32 – 1 cava
Cad 2D Cad 3D
Lamierino di fissaggio Profilo 60 con Profilo 30
Reinforcement Plate
