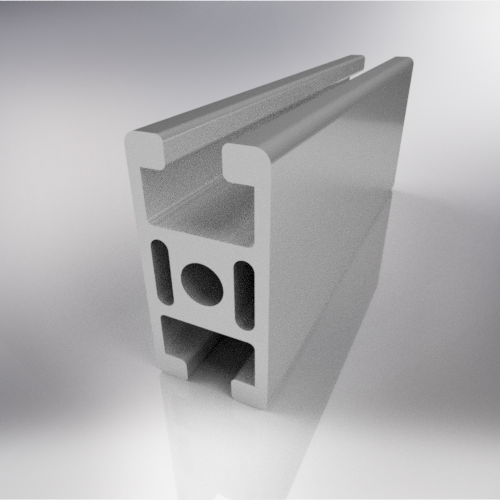

Profile 20x40 – 2 Ways light

Code:
BPRDD0000035
Old Code:
01.2040.2A
Serie:
40
Area:
362 mm2
Bar length:
6100 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
2,232 Wx/cm3 – 1,722 Wy/cm3
Moment of inertia:
4,463 Jx/cm4 -1,722 Jy/cm4
Weight:
0,975 kg/ml
Profilo 20×40 – 2 cave leggero - BPRDD0000035
Profilo 20×40 – 2 cave leggero
Profilo 20×40 – 2 cave leggero

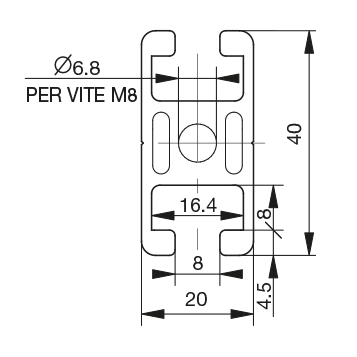

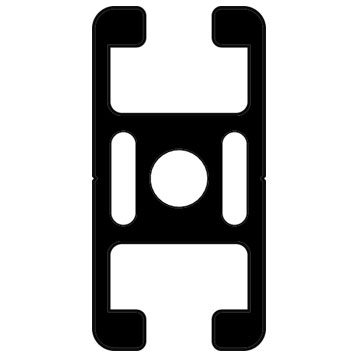

Cad 2D Cad 3D
