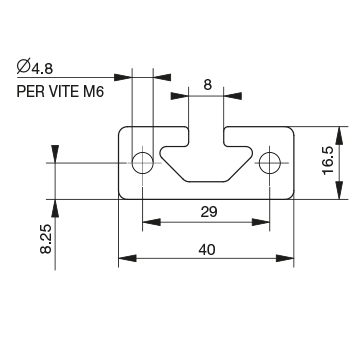

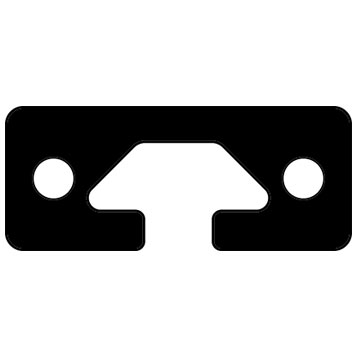

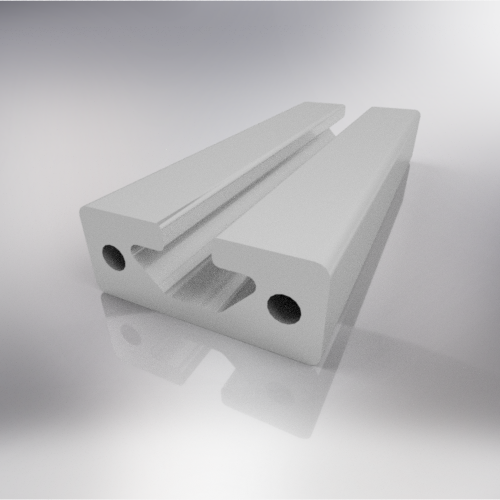

Profile 40x16,5 – 1 Way

Code:
BPRDD0000087
Old Code:
01.4016,5.1A
Serie:
40
Area:
451 mm2
Bar length:
6100 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
1,421 Wx/cm3 – 3,765 Wy/cm3
Moment of inertia:
1,253 Jx/cm4 – 7,529 Jy/cm4
Weight:
1,218 kg/ml
Profilo 40×16,5 – 1 cava - BPRDD0000087
Profilo 40×16,5 – 1 cava
Profilo 40×16,5 – 1 cava
Cad 2D Cad 3D
Serie 30-40-45

30-40-45 Series
