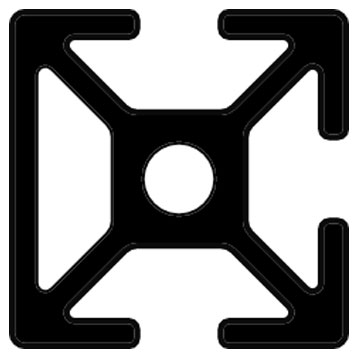

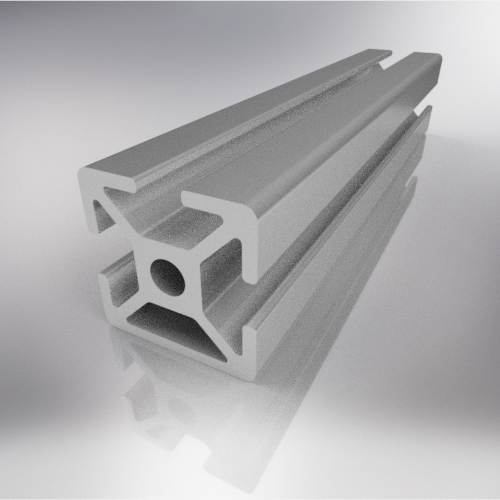

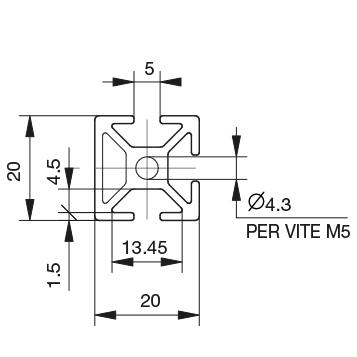

Profile 20x20 – 3 ways ≠ 5

Code:
BPRDD0000029
Old Code:
01.2020.3A
Area:
178 mm2
Bar length:
6100 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
0,64 Wx/cm3 – 0,68 Wy/cm3
Moment of inertia:
0,64 Jx/cm4 – 0,71 Jy/cm4
Weight:
0,481 kg/ml
Profilo 20×20 – 3 cave ≠ 5 - BPRDD0000029
Profilo 20×20 – 3 cave ≠ 5
Profilo 20×20 – 3 cave ≠ 5
Cad 2D Cad 3D
Serie 30-40-45

30-40-45 Series
