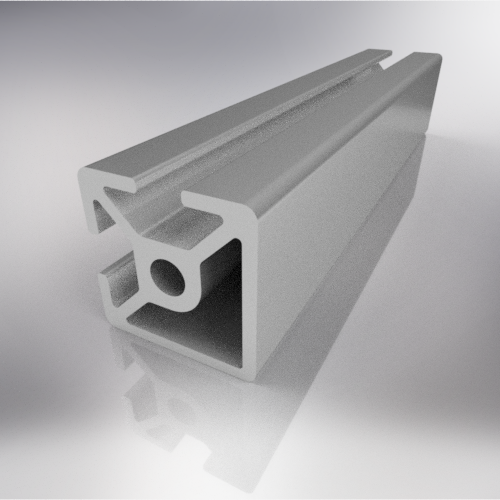

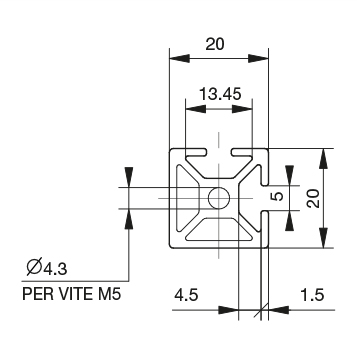

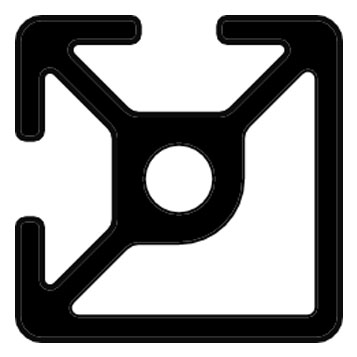

Profile 20x20 – 2 ways≠ 5

Code:
BPRDD0000028
Old Code:
01.2020.2A
Serie:
40
Area:
170 mm2
Bar length:
6100 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
0,69 Wx/cm3 – 0,69 Wx/cm3
Moment of inertia:
0,69 Jx/cm4 – 0,69 Jx/cm4
Weight:
0,460 kg/ml
Profilo 20×20 – 2 cave ≠ 5 - BPRDD0000028
Profilo 20×20 – 2 cave ≠ 5
Profilo 20×20 – 2 cave ≠ 5
Cad 2D Cad 3D
