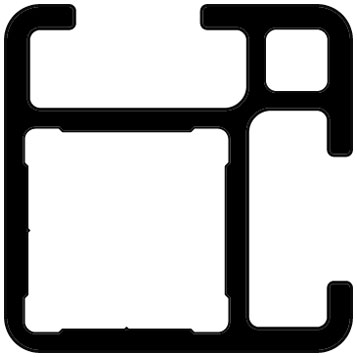

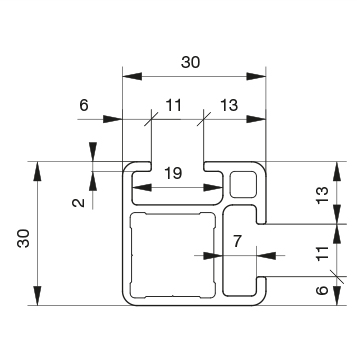

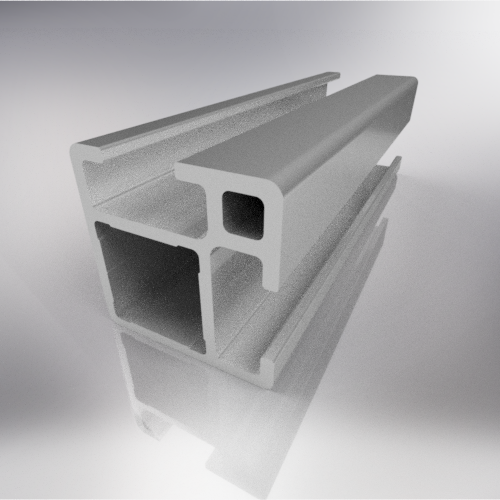

Tubular Profile 30x30 – 2 Ways Fast-Line

Code:
BPRDD0000049
Old Code:
01.102.00A
Serie:
Serie 30 Macap
Area:
253,2 mm2
Bar length:
6040 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
3,62 Wx/cm3 – 3,62 Wy/cm3
Moment of inertia:
5,42 Jx/cm4 – 5,42 Jy/cm4
Weight:
0,721 Kg/ml
Profilo 30×30 tubolare – 2 cave Fast-Line - BPRDD0000049
Profilo 30×30 tubolare – 2 cave Fast-Line
Profilo 30×30 tubolare – 2 cave Fast-Line
Cad 2D Cad 3D
