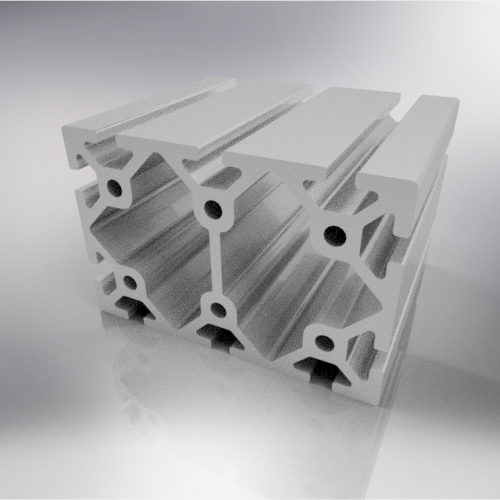

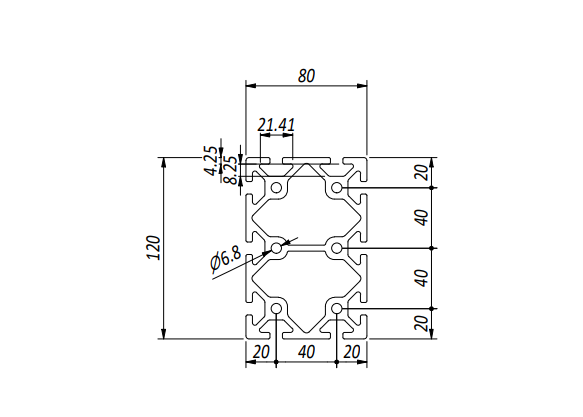

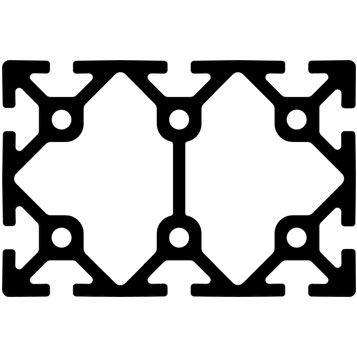

Profile 80x120 – 10 Ways Heavy

Code:
BPRDD0000207
Old Code:
01.80120.XP10A
Serie:
30, 40, 45
Area:
3235 mm2
Bar length:
6040 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
61 Wx/cm3 – 83 Wy/cm3
Moment of inertia:
245 Jx/cm4 – 500 Jy/cm4
Weight:
9,200 kg/ml
Profilo 80×120 – 10 cave pesante - BPRDD0000207
Profilo 80×120 – 10 cave pesante
Cad 2D Cad 3D
