Profile 40x120 – 8 Ways heavy

Code:
BPRDD0000086
Old Code:
01.40120.P8A
Serie:
40
Area:
2334 mm2
Bar length:
6100 mm
Materiale:
LEGA EN AW 6060
Modulo di resistenza:
19,481 Wx/cm3 – 51,897 Wy/cm3
Moment of inertia:
38,960 Jx/cm4 – 311,220 Jy/cm4
Weight:
6,302 kg/ml

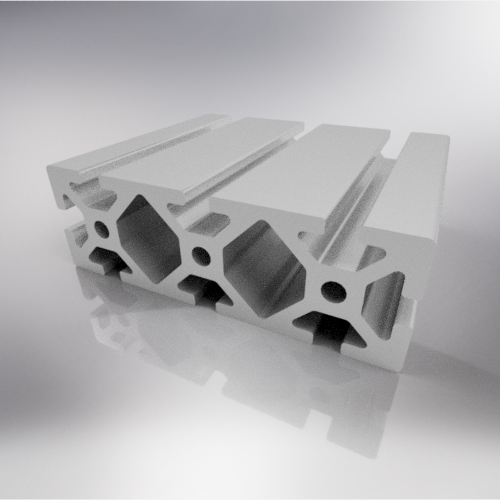

PROFILO 40x120 - 8 CAVE PESANTE - BPRDD0000086

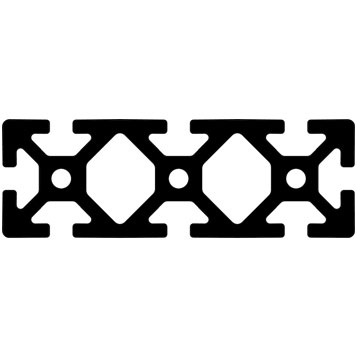

01_40120_P8A_SQ

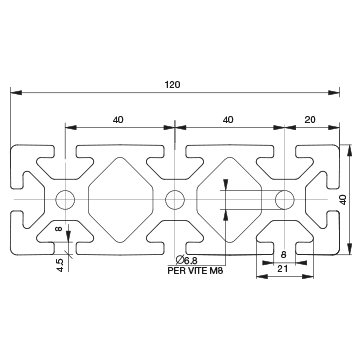

BPRDD0000086_ai
Cad 2D Cad 3D
