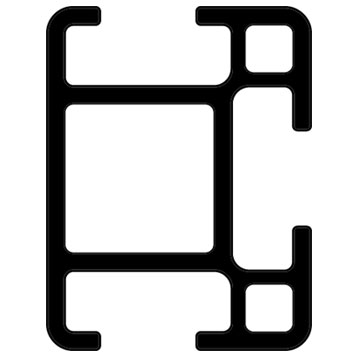

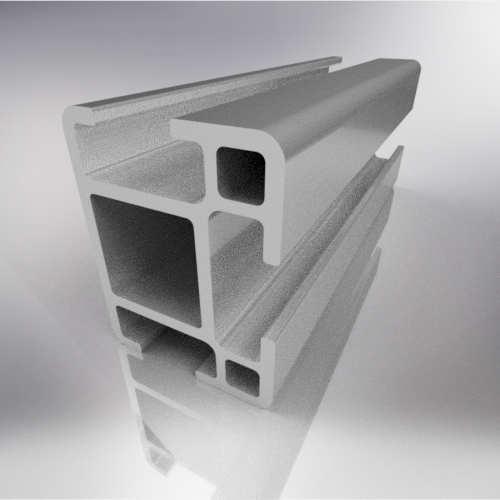

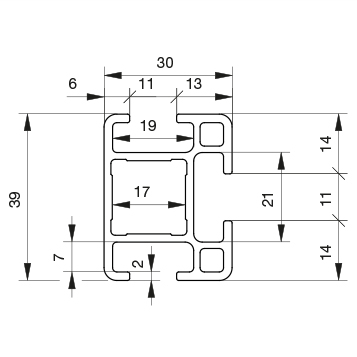

Profile 39x30 – 3 Ways Fast-Line

Code:
BPRDD0000080
Old Code:
01.304.00A
Serie:
30
Area:
341 mm2
Bar length:
6100 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
2,686 Wx/cm3 – 2,420 Wy/cm3
Moment of inertia:
5,238 Jx/cm4 – 3,694 Jy/cm4
Weight:
0,921 Kg/ml
Profilo 39×30 – 3 cave Fast-Line - BPRDD0000080
Profilo 39×30 – 3 cave Fast-Line
Profilo 39×30 – 3 cave Fast-Line
Profilo 39×30 – 3 cave Fast-Line - BPRDD0000080
Profilo 39×30 – 3 cave Fast-Line
Profilo 39×30 – 3 cave Fast-Line
Cad 2D Cad 3D
Tubolare 25×25 Aisi 304
Profile 40x21 – 2 Ways Fast-Line
