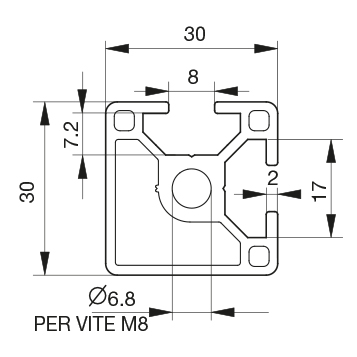

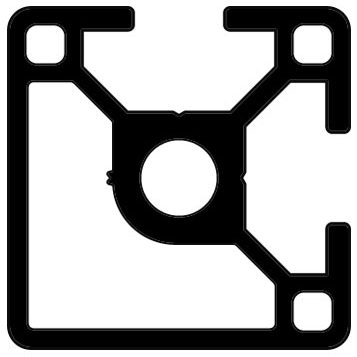

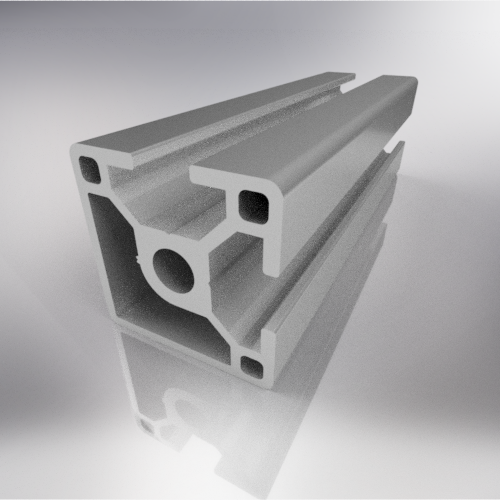

Profile 30x30 – 2 Ways à 90°

Code:
BPRDD0000050
Old Code:
01.3030.2A
Serie:
30
Area:
316 mm2
Bar length:
6040 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
1,904 Wx/cm3 – 1,902 Wy/cm3
Moment of inertia:
2,883 Jx/cm4 – 2,882 Jy/cm4
Weight:
0,853 Kg/ml
Profilo 30×30 – 2 cave a 90° - BPRDD0000050
Profilo 30×30 – 2 cave a 90°
Profilo 30×30 – 2 cave a 90°
Cad 2D Cad 3D
