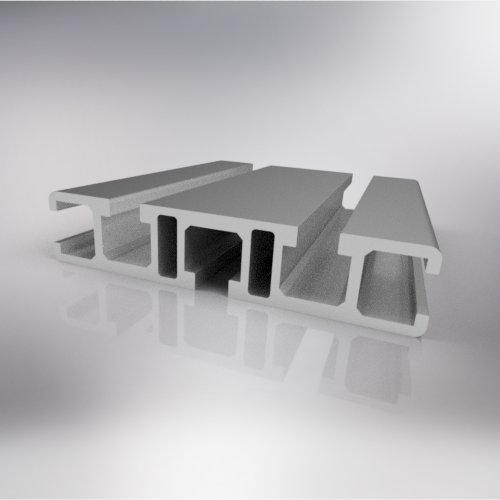

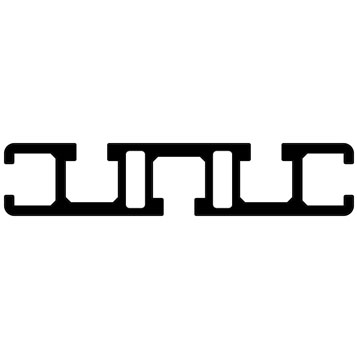

Profile 18,5x90 – 5 ways light

Code:
BPRDD0000024
Old Code:
01.9018,5.L5A
Serie:
45
Area:
625 mm2
Bar length:
6040 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
3,110 Wx/cm3 – 9,160 Wy/cm3
Moment of inertia:
2,960 Jx/cm4 – 41,240 Jy/cm4
Weight:
1,687 kg/ml
Profilo 18,5×90 – 5 cave leggero - BPRDD0000024
Profilo 18,5×90 – 5 cave leggero
Profilo 18,5×90 – 5 cave leggero

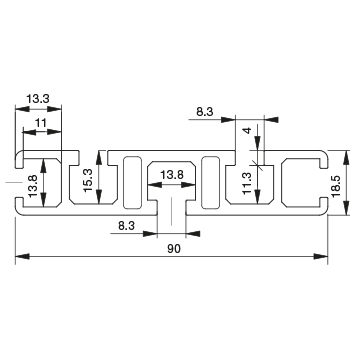

Cad 2D Cad 3D
