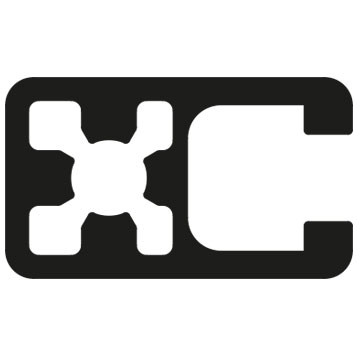

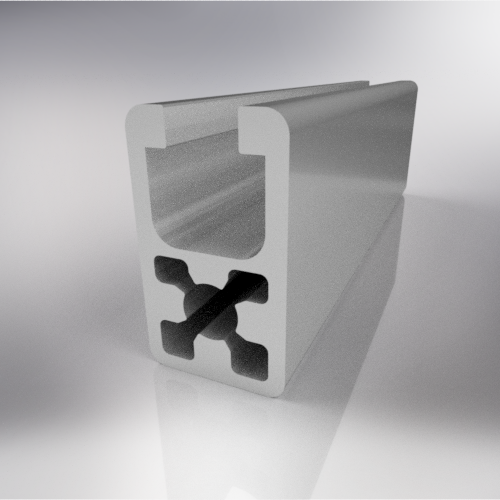

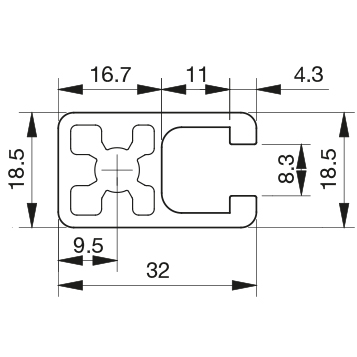

Profile 18,5x32 – 1 Way light

Code:
BPRDD0000072
Old Code:
01.3218,5.L1A
Serie:
45
Area:
278,19 mm2
Bar length:
6040 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
1,13 Wx/cm3 – 1,27 Wy/cm3
Moment of inertia:
1,18 Jx/cm4 – 2,54 Jy/cm4
Weight:
0,751 kg/ml
Profilo 18,5×32 – 1 cava leggero - BPRDD0000072
Profilo 18,5×32 – 1 cava leggero
Profilo 18,5×32 – 1 cava leggero
Profilo 18,5×32 – 1 cava leggero - BPRDD0000072
Profilo 18,5×32 – 1 cava leggero
Profilo 18,5×32 – 1 cava leggero
Cad 2D Cad 3D
Piatto di serraggio M5
Clamp overlapping profiles
