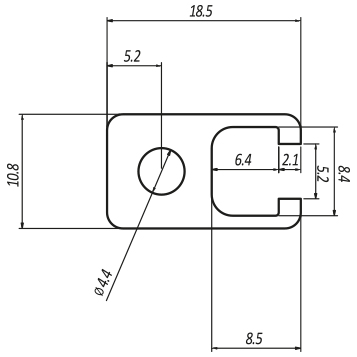

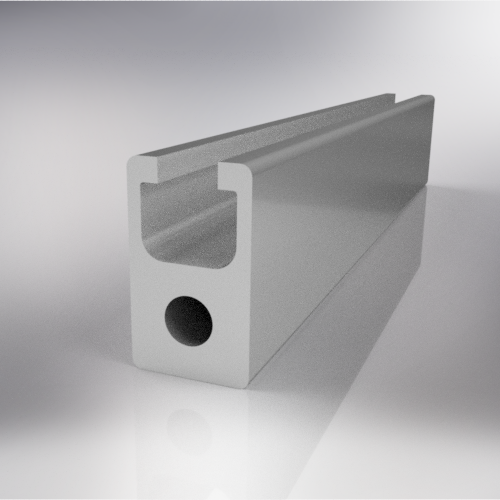

Profile 10,8x18,5 – 1 Way ≠ 6

Code:
BPRDD0000487
Serie:
45
Area:
119,739 mm2
Bar length:
6050 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
0,301 Wx/cm3 – 1,7333 Wy/cm3
Moment of inertia:
0,339 Jx/cm4 – 0,936 Jy/cm4
Weight:
0,323 kg/ml
Profilo 10,8×18,5 – 1 cava ≠ 6 - BPRDD0000487
Profilo 10,8×18,5 – 1 cava ≠ 6
Profilo 10,8×18,5 – 1 cava ≠ 6
Profilo 10,8×18,5 – 1 cava ≠ 6 - BPRDD0000487
Profilo 10,8×18,5 – 1 cava ≠ 6
Profilo 10,8×18,5 – 1 cava ≠ 6
Cad 2D Cad 3D
