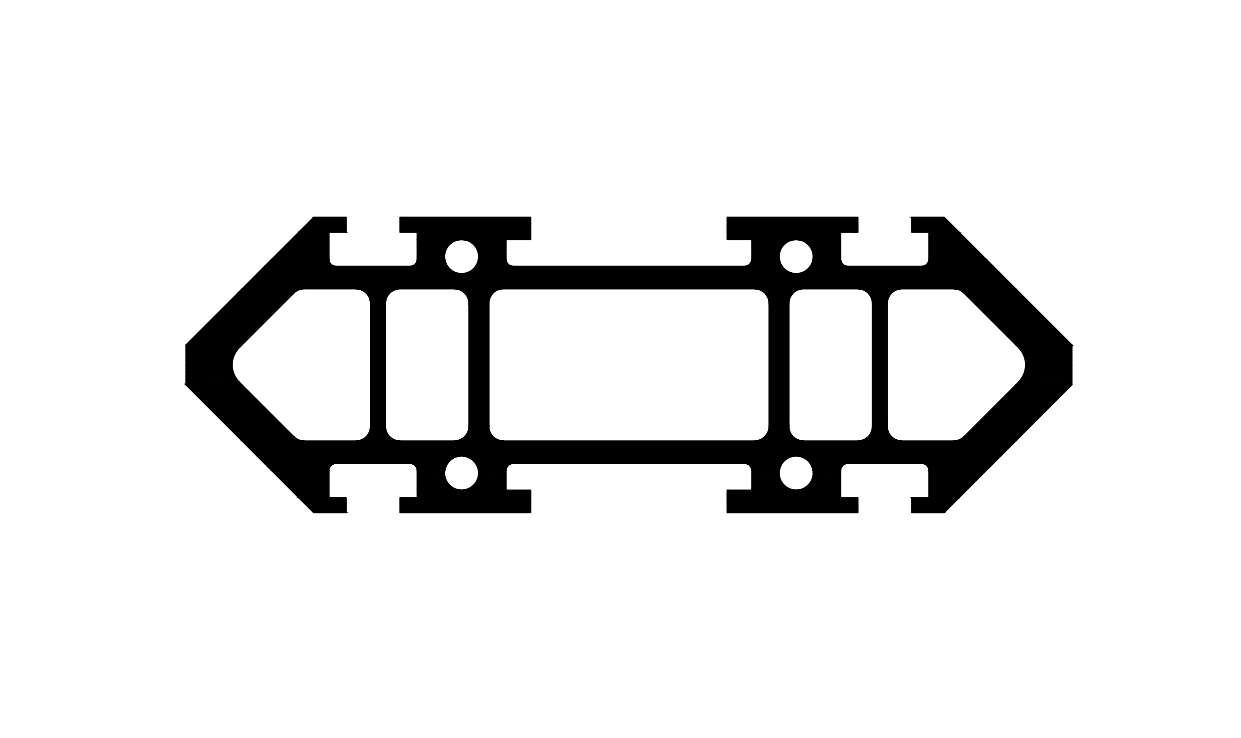

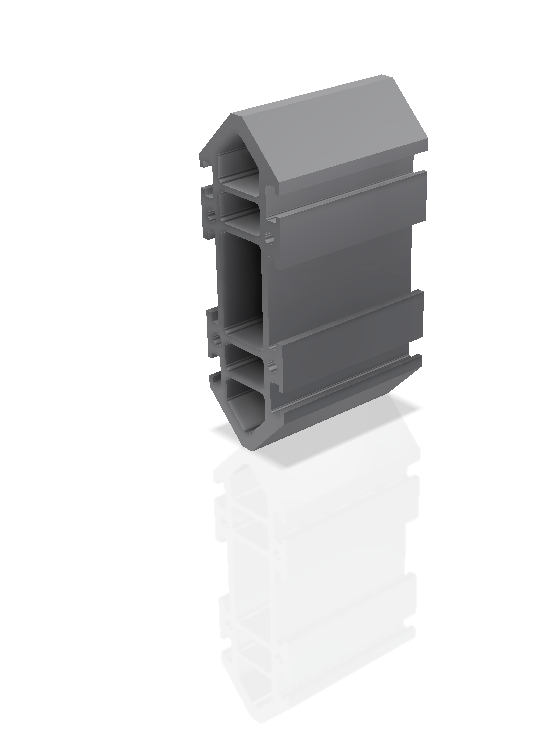

Monorail Plus 180 profile

Description:

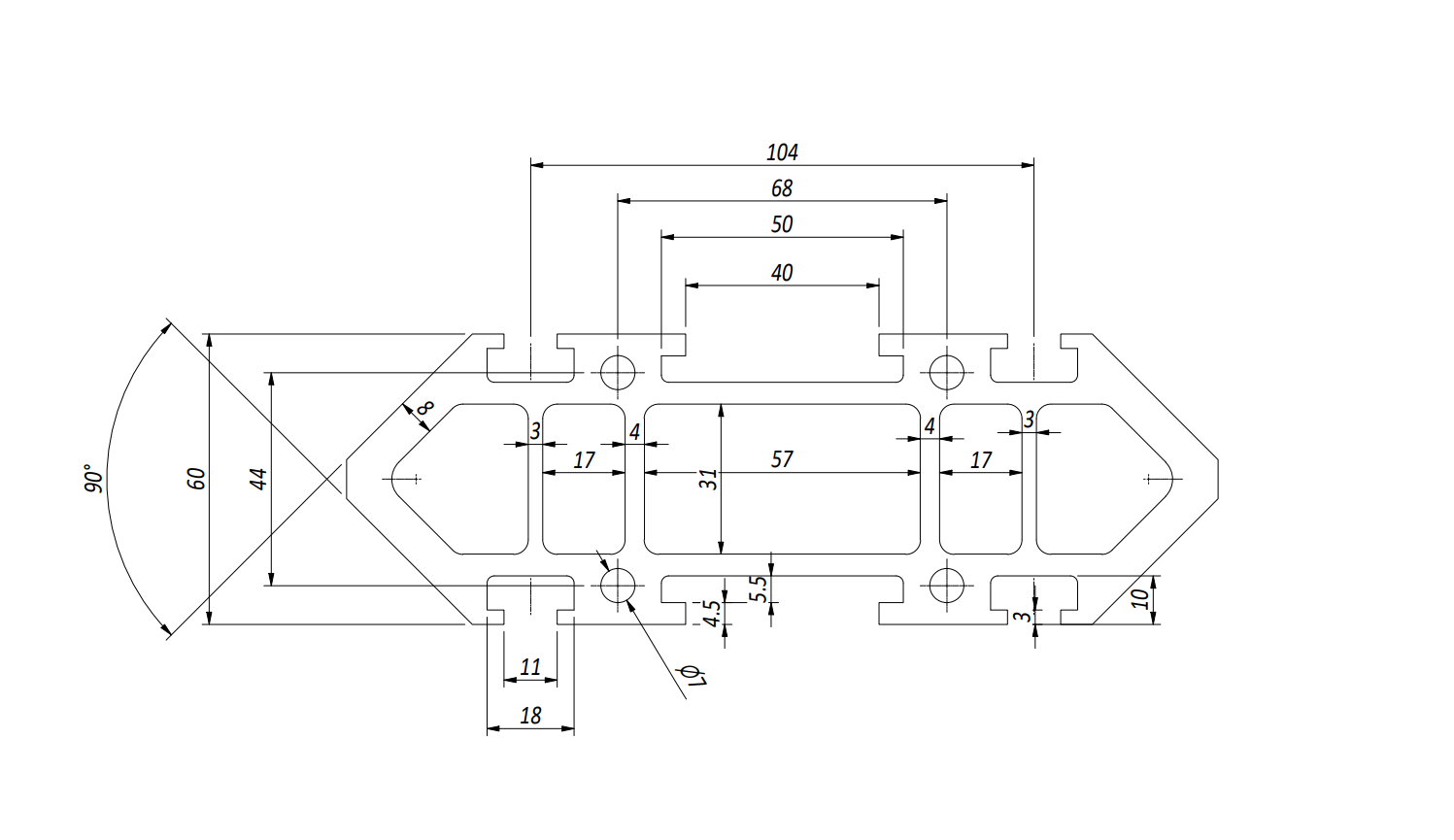

ENCUMBRANCE: y 60mm / z 180mm

Code:
BPRGD0000137
Serie:
Per Guide Lineari
Area:
358,61 mm2
Bar length:
6040 mm
Materiale:
LEGA EN AW 6060
Modulo di resistenza:
113, Wz/cm3 – 41,4 Wy/cm3
Moment of inertia:
1020,7 Jz/cm4 – 124,2 Jy/cm4
Weight:
9,67 kg/ml
Cad 2D Cad 3D
Rollers on Monorail Plus 180 Eccentric swing carriage
Profilo Monorail Plus 180
