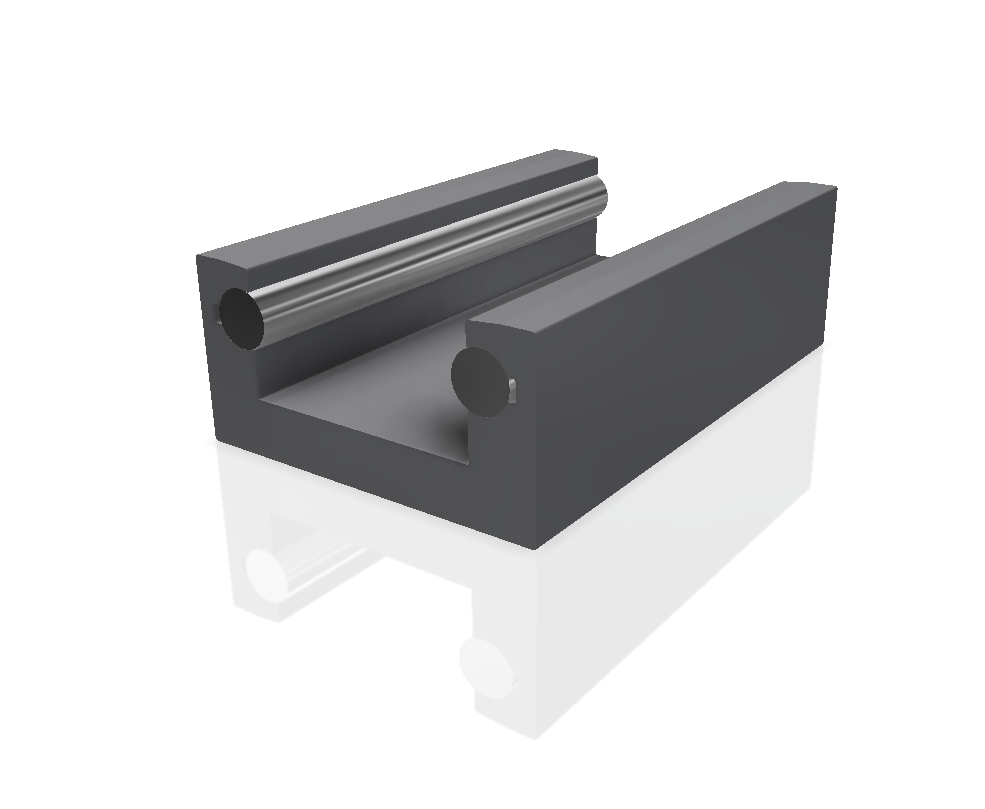

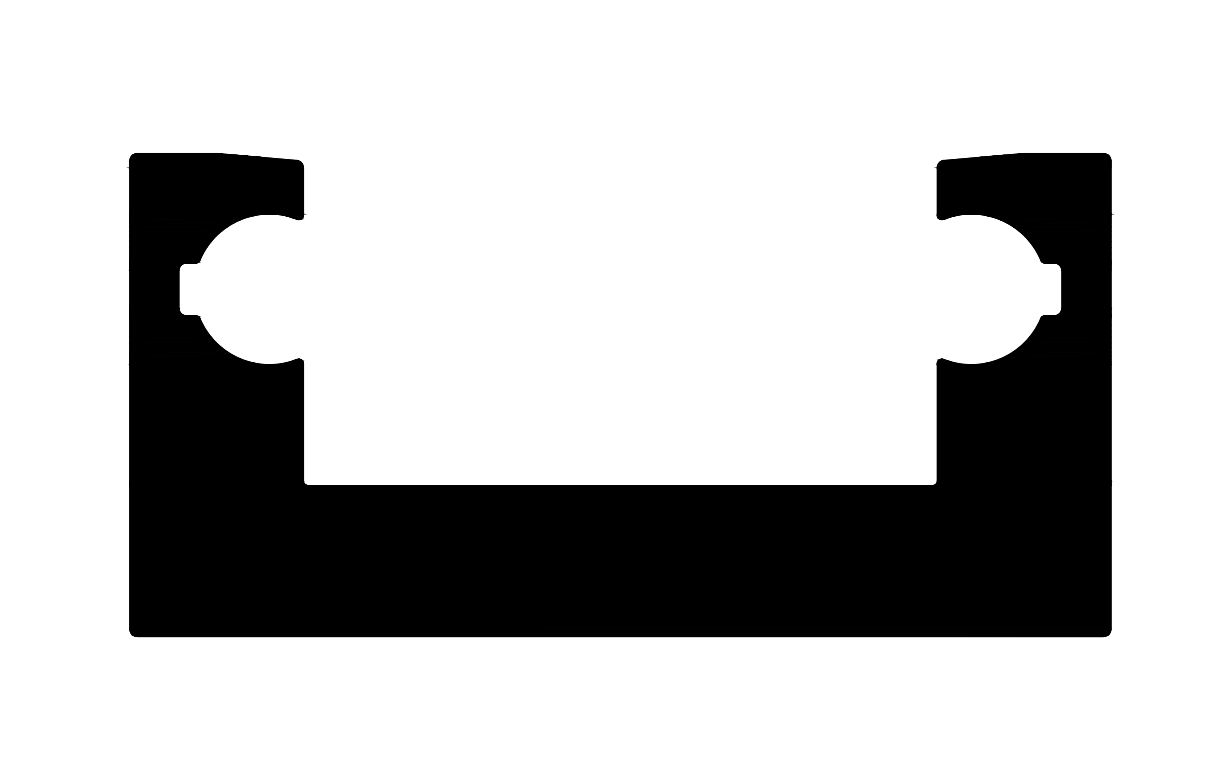

Linear guide profile - MR65
Description:

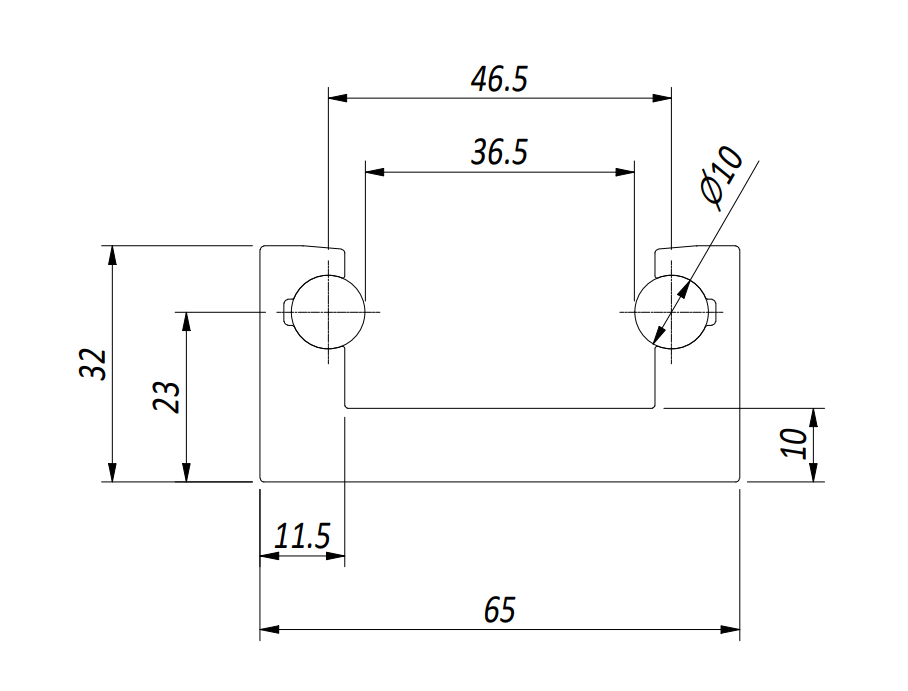

ENCUMBRANCE: y 65.00mm / z 32.00mm
Code:
APRGD0000002
Serie:
Per Guide Lineari
Area:
1180.27 mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
18.53 Wz/cm3 – 4.39 Wy/cm3
Moment of inertia:
60.23 Jz/cm4 – 10.09 Jy/cm4
Weight:
4.00 kg/ml
