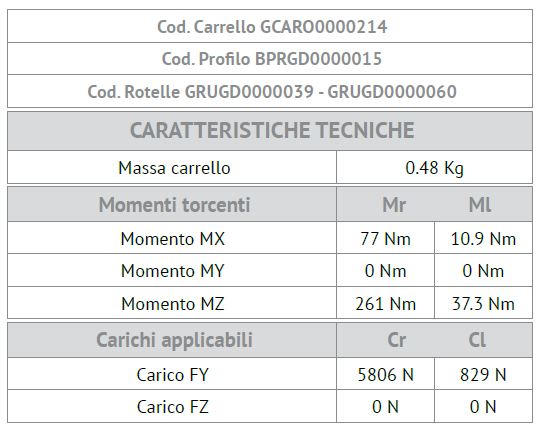

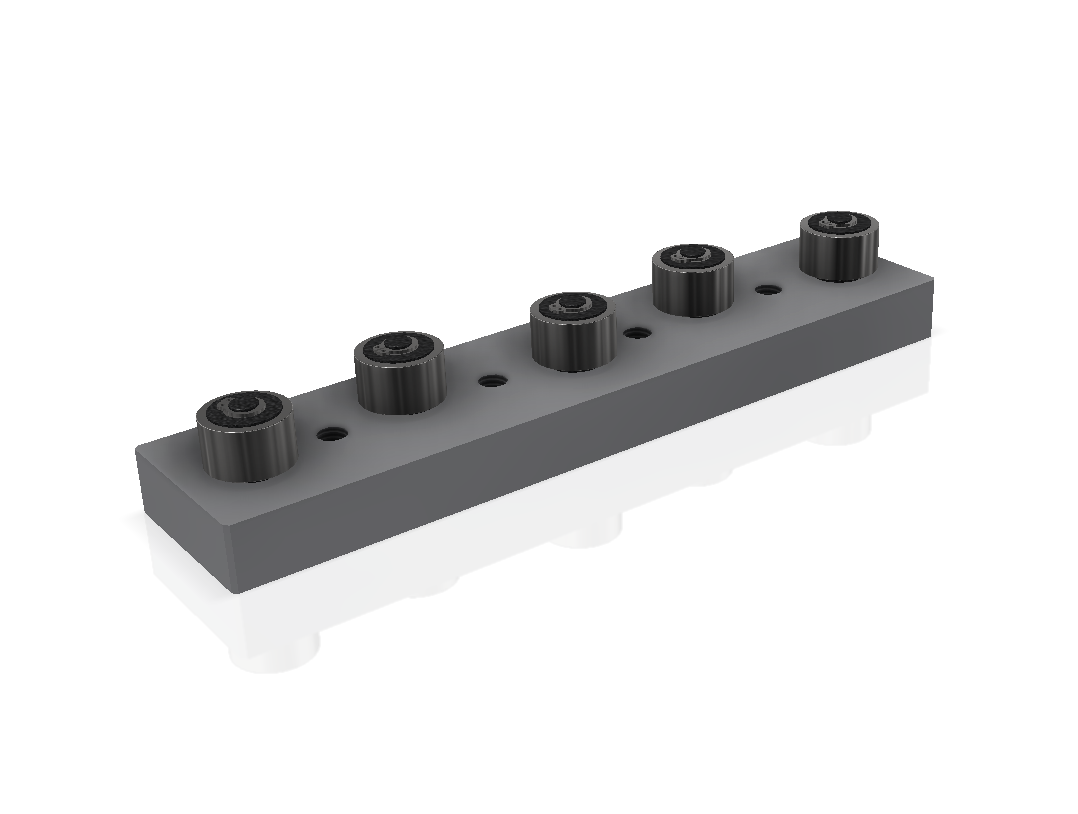

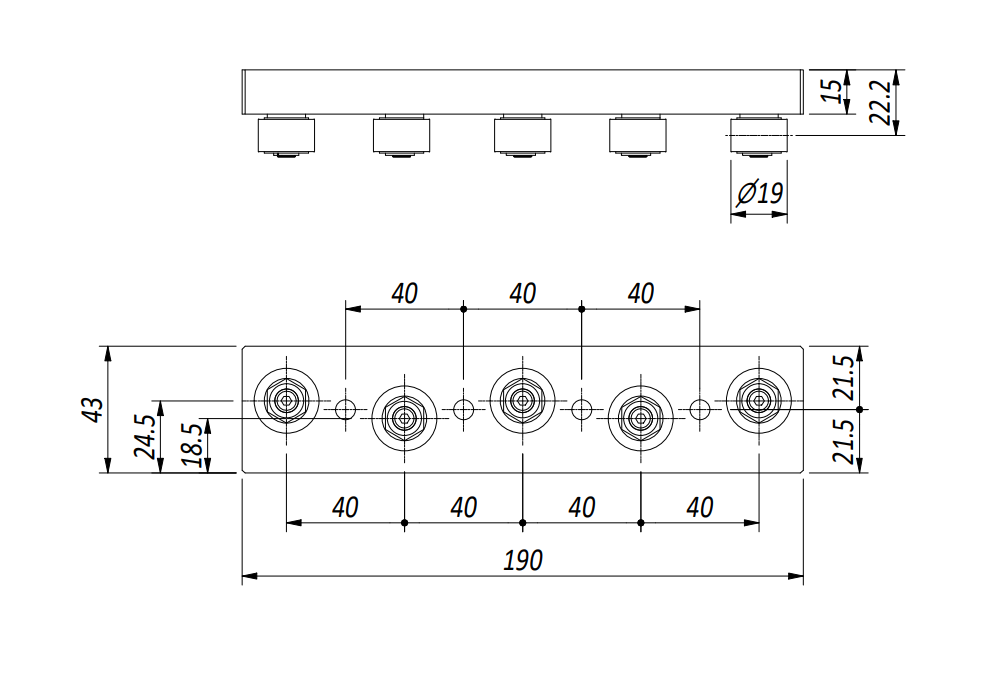

carriage for lienear guide - IL43C/5 Description: TORQUE MX moment: mr 77Nm / ml 10.9Nm moment MY: mr 0 Nm / ml 0 Nm Moment MZ: mr 261Nm / ml 37.3Nm APPLICABLE LOADS Charge FY: cr 5806N / 829N FX load: cr 0N / cl 0N Code: GCARO0000214 Serie: Accessori Motion Weight: 0.48kg Cad 2D Cad 3D Carrello per guida lineare - IL43C/5 Carrello per guida lineare - IL65/3
