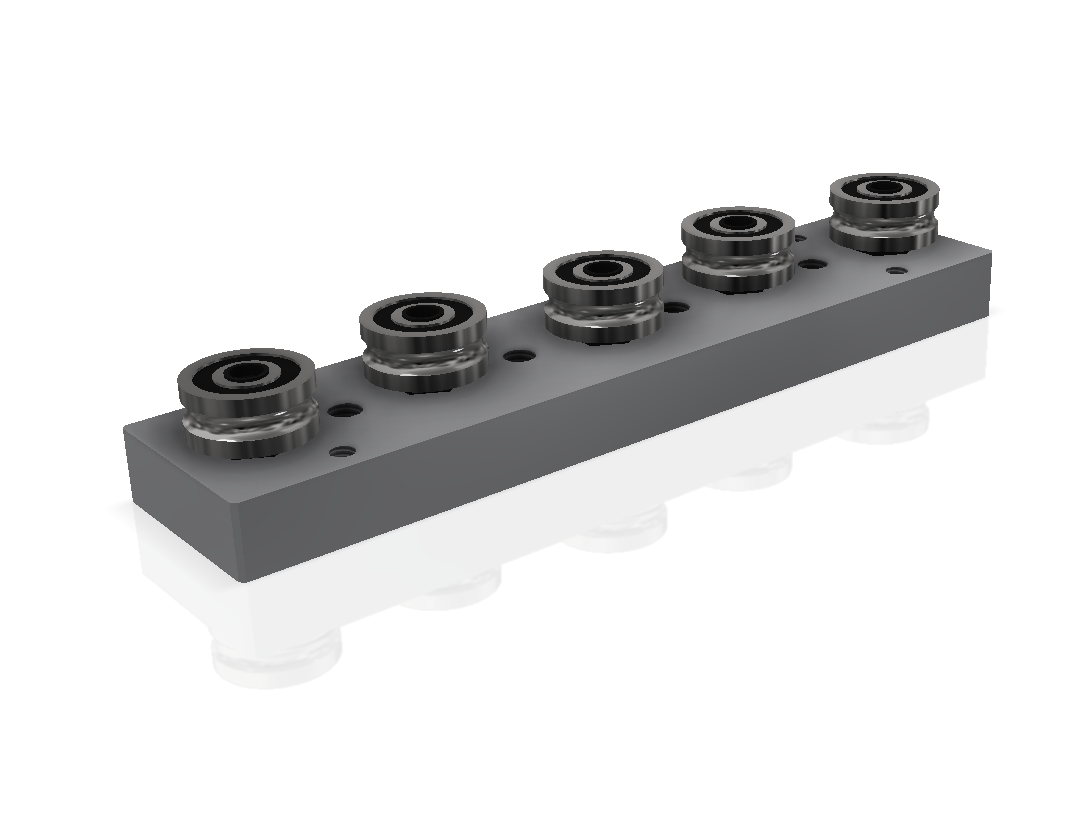

carriage for lienear guide - IL42/5

Description:

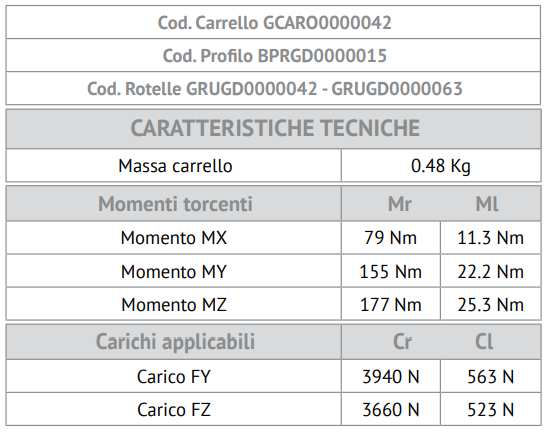

TORQUE
 moment MX: mr 79Nm/ml 11.3Nm

moment MY: mr 155 Nm / ml 22.2 Nm

Moment MZ: mr 177Nm / ml 25.3Nm

APPLICABLE LOADS

FY load: cr 3940N / 563N

FX load: cr 3660N / cl 523N

Code:
GCARO0000042
Serie:
Accessori Motion
Weight:
0.48KG

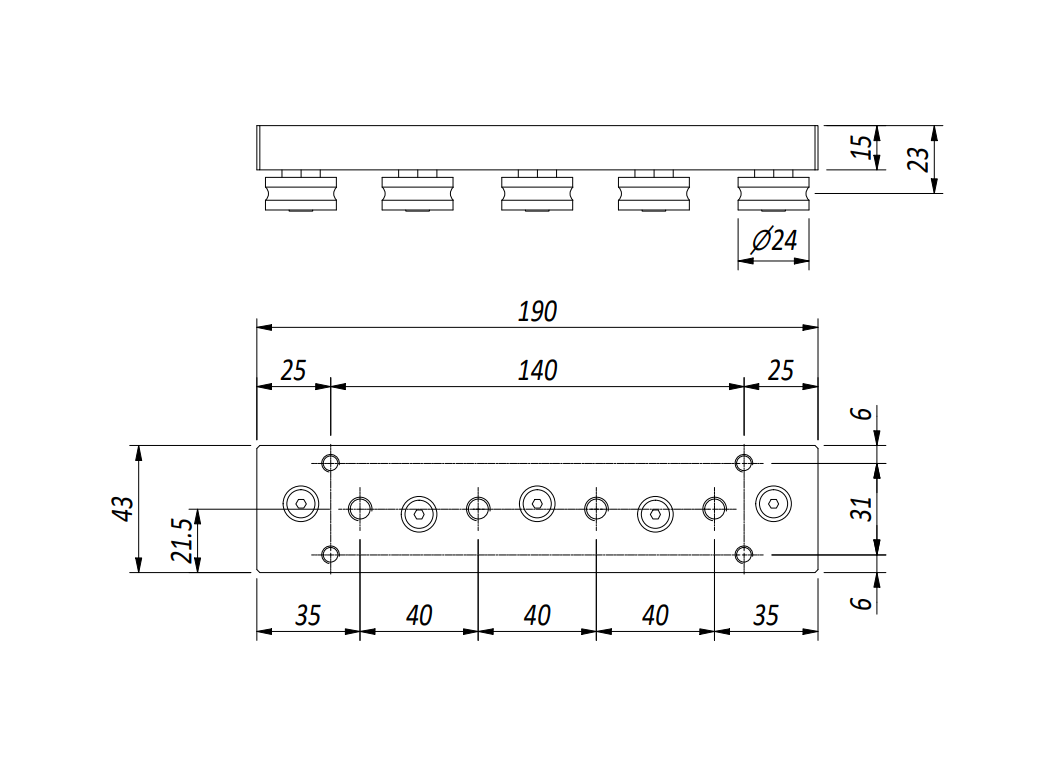

Cad 2D Cad 3D
