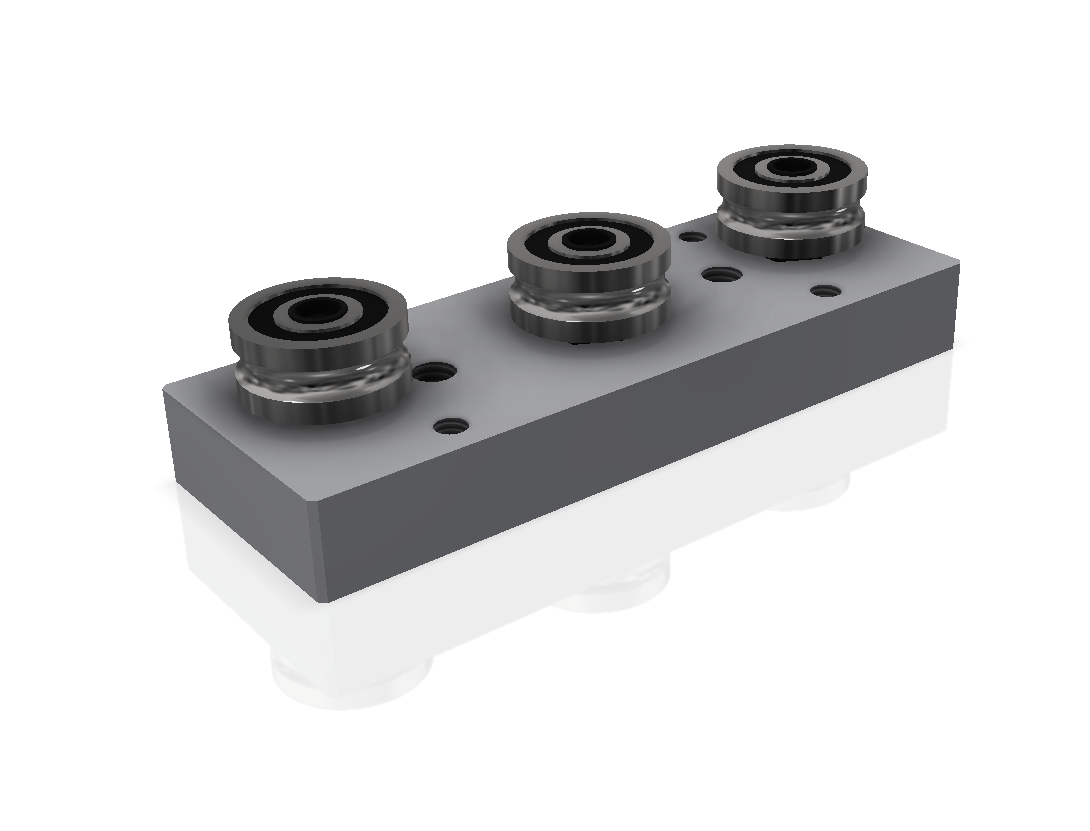

carriage for lienear guide - IL42/3

Description:

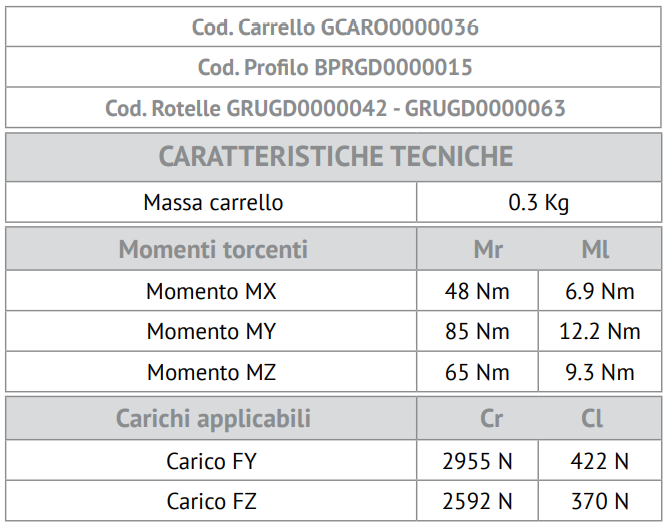

TORQUE

MX moment: mr 48Nm/ml 6.9Nm

moment MY: mr 85 Nm / ml 12,2Nm

MZ moment: smr 65Nm / ml 9.3Nm

APPLICABLE LOADS

FY load: cr 2955N / 422N

FX load: cr 2592N / cl 370N

Code:
GCARO0000036
Serie:
Accessori Motion
Weight:
0.3kg
Cad 2D Cad 3D
