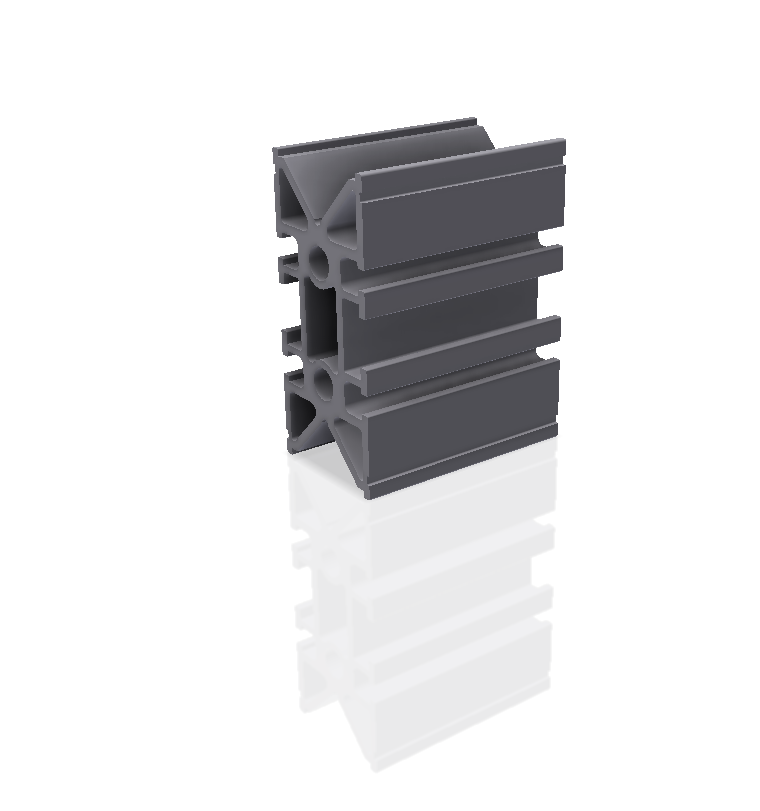

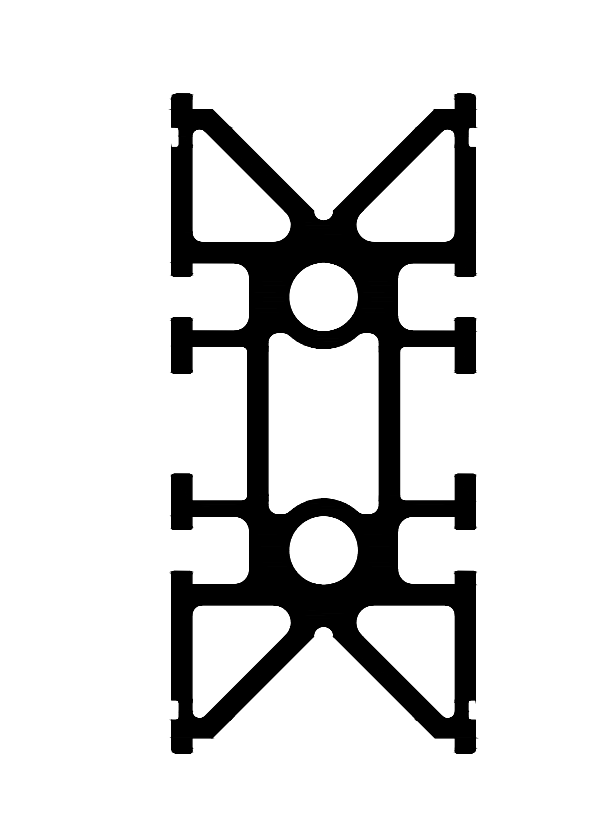

90 ° V guide profile 130X60

Code:
BPRGD0000025
Serie:
Per Guide Lineari
Area:
2979.00 mm2
Bar length:
6040mm
Materiale:
LEGA EN AW 6060
Modulo di resistenza:
55.00 Wz/cm3 – 28.00 Wy/cm3
Moment of inertia:
358.00 Jz/cm4 – 84.00 Jy/cm4
Weight:
7.49 kg/ml
Cad 2D Cad 3D
Rotelle Monorail Plus 120
Profilo guida a V 90° 180X60
