V Guide Profile 90° 60x180

Code:
BPRGD0000026
Old Code:
01.18060.V90AD
Serie:
Per Guide Lineari
Area:
3726 mm2
Bar length:
6000/7000 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
111,7 Wy/cm3 – 42 Wz/cm3
Moment of inertia:
1005,1 Jy/cm4 – 125,7 Jz/cm4
Weight:
10,09 kg/m

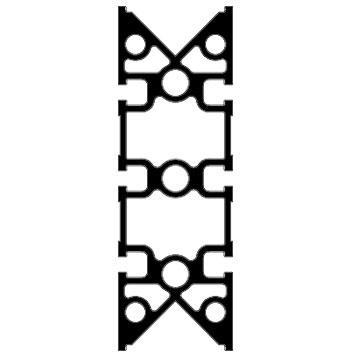

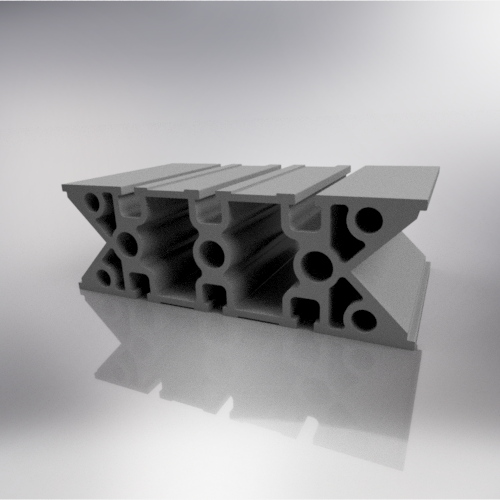

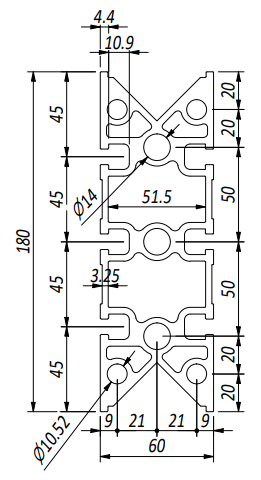

Profilo guida a V 90° 60×180 - BPRGD0000026
Profilo guida a V 90° 60×180
Profilo guida a V 90° 60×180 - BPRGD0000026
Profilo guida a V 90° 60×180
Cad 2D Cad 3D
