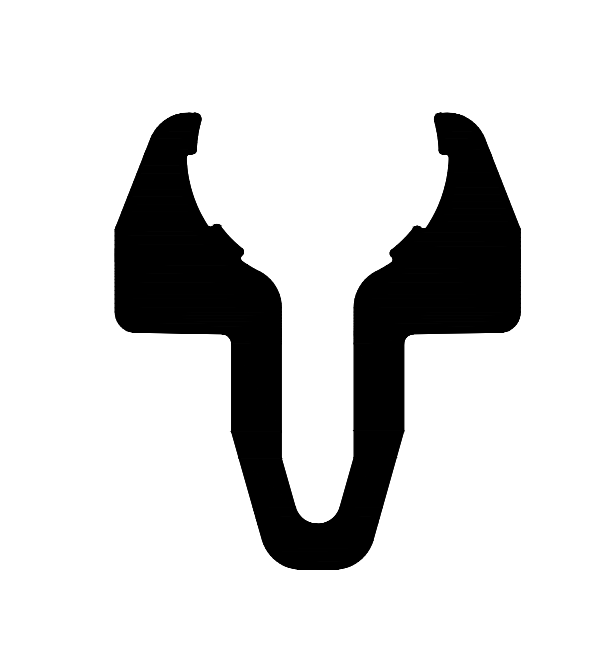

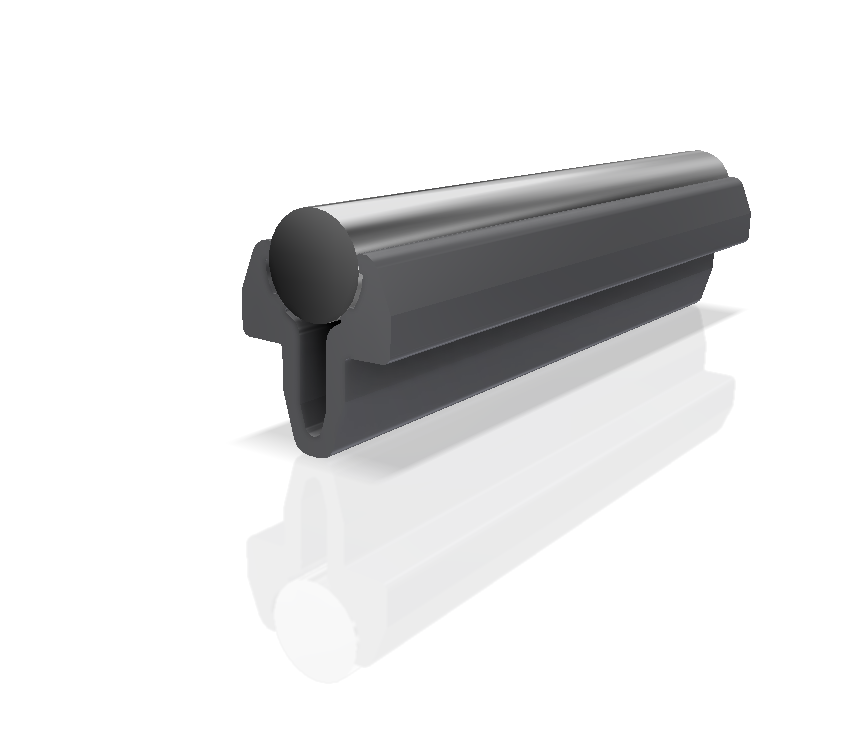

Linear guide profile - Round containment profile ø12

Description:

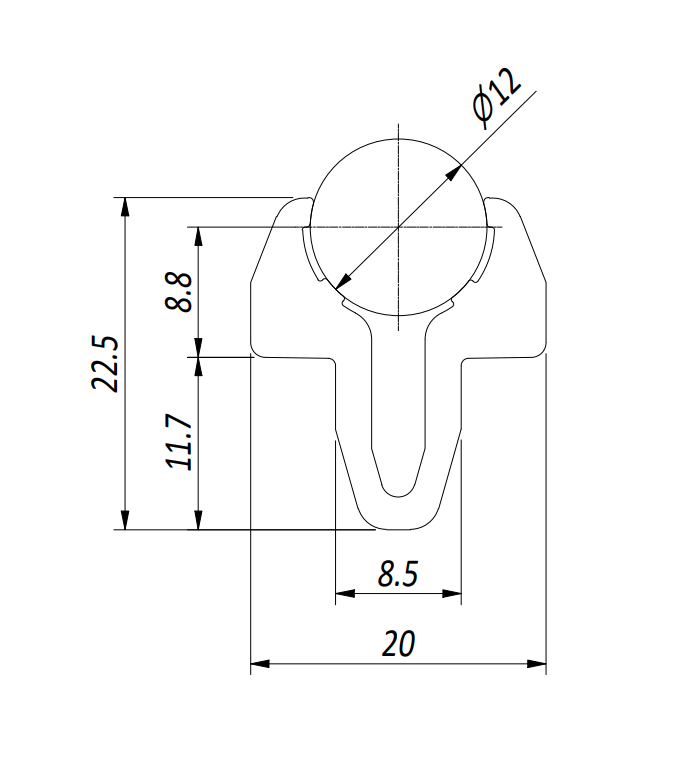

ENCUMBRANCE: y 20.00mm / z 26.50mm

Code:
BPRGD0000020
Serie:
Per Guide Lineari
Area:
160.00 mm2
Bar length:
6100 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
0.547 Wz/cm3 – 0.390 Wy/cm3
Moment of inertia:
0.548 Jz/cm4 – 0.479 Jy/cm4
Weight:
0.432 kg/ml
