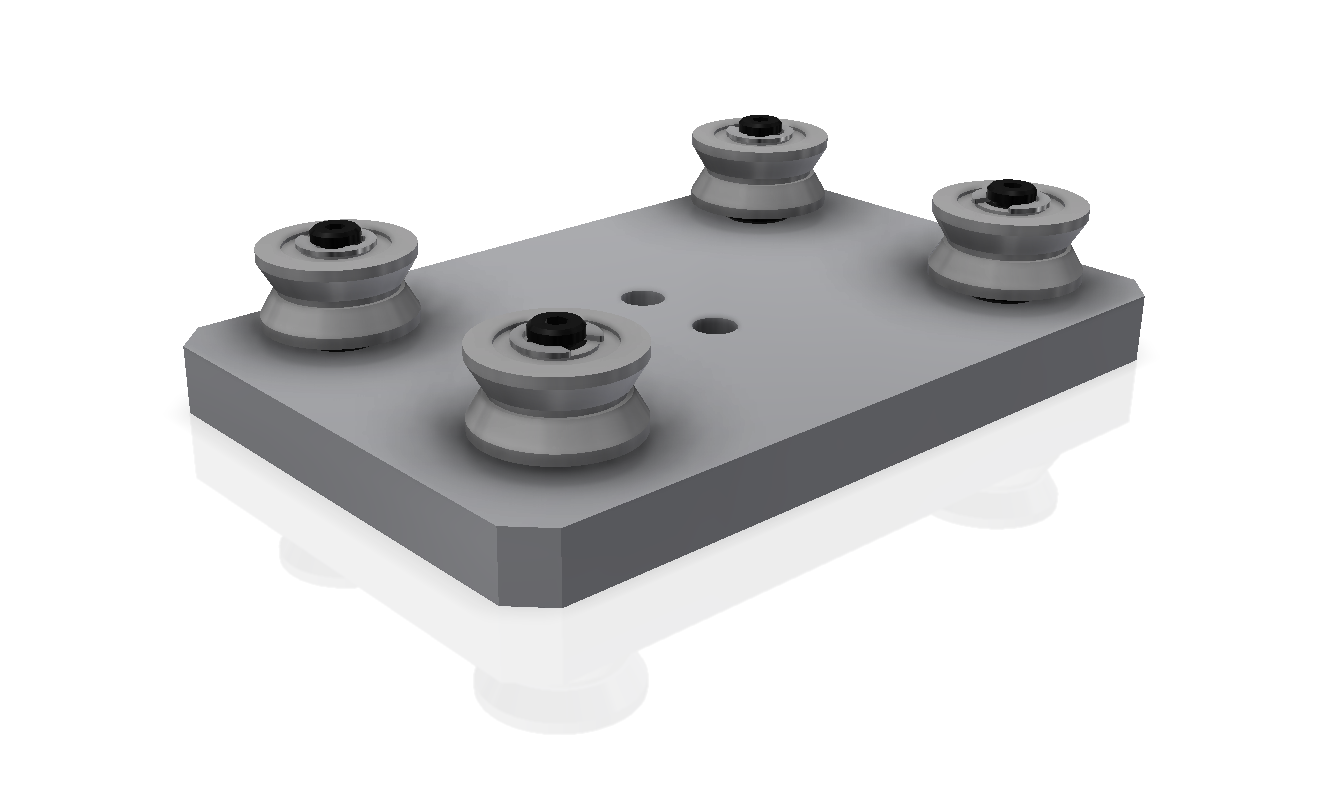

Linear guide carriage - GD10A

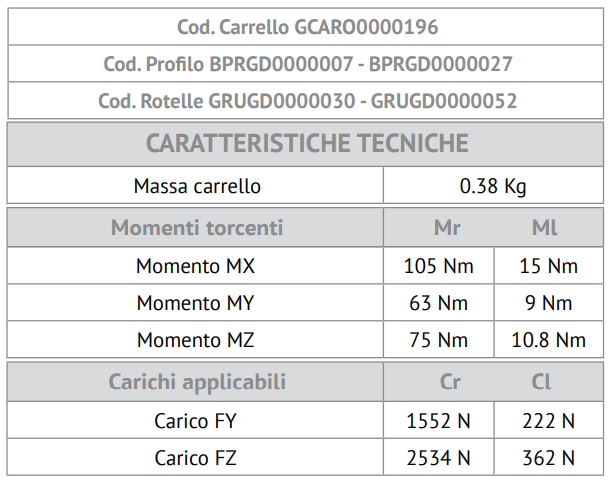

Description:

TORQUE

moment MX: mr 105Nm / 15Nm

moment MY: mr 63Nm / 9Nm

moment MZ: mr 75Nm / 10.8Nm

APPLICABLE LOADS

loads FY: cr 1552N / 222N

loads FZ: cr 2534N / 362N

Code:
GCARO0000196
Serie:
Accessori Motion
Weight:
0.38Kg

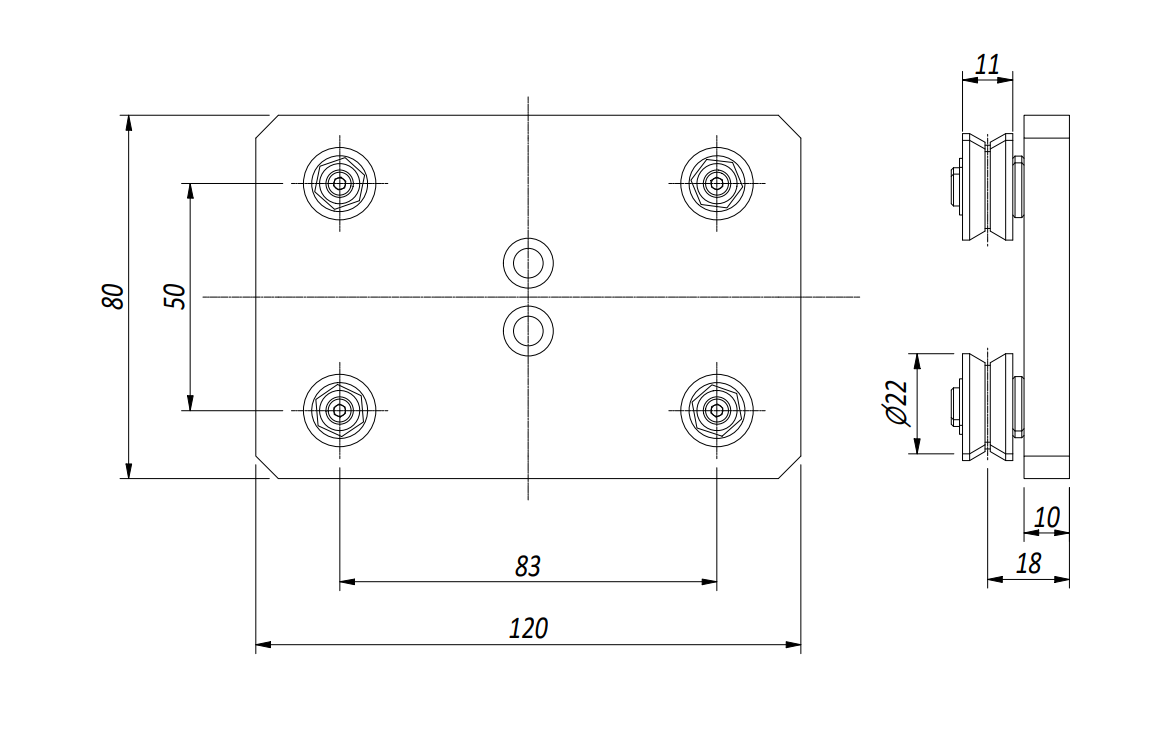

Cad 2D Cad 3D
Carrello per guida lineare - GD6
Carrello per guida lineare - GD10B
