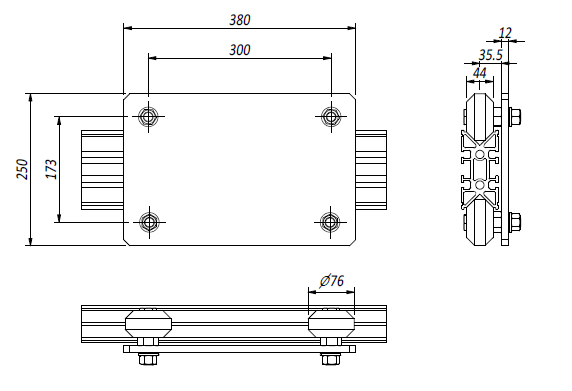

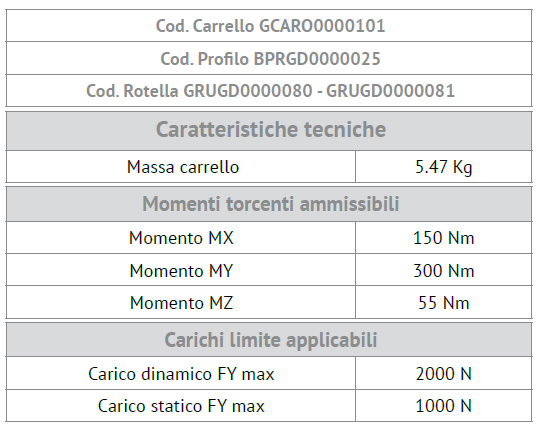

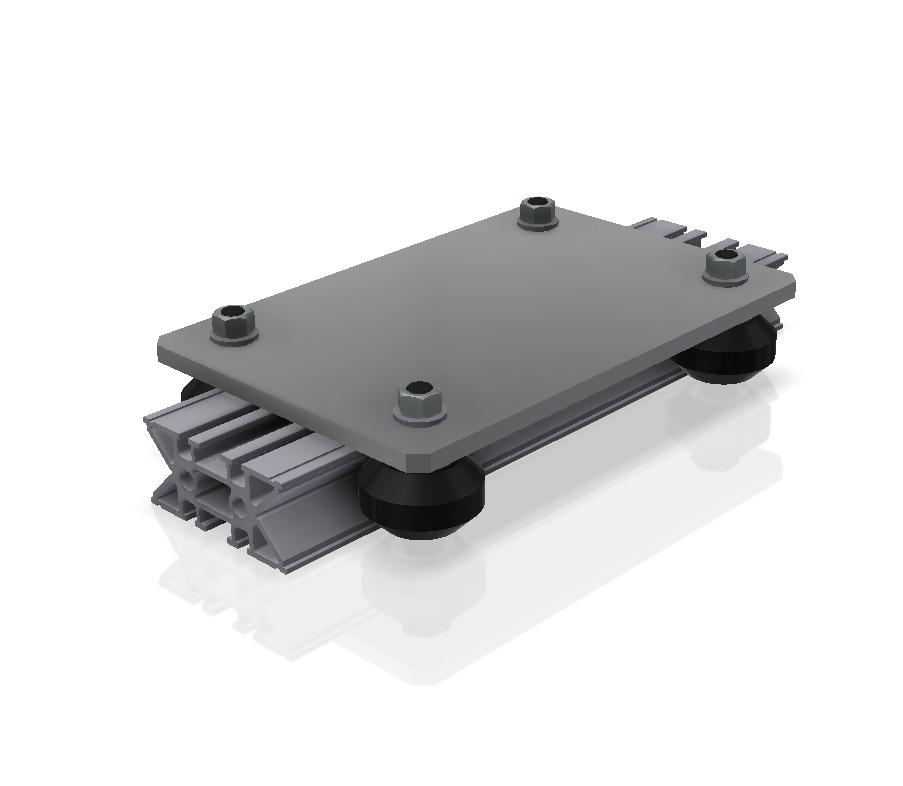

carriage for linear guide Monorail130 Description: TORQUE moment MX: 150 Nm moment MY: 300 Nm moment MZ :55 Nm LIMIT LOADS APPLICABLE dynamic load FY max: 2000N static load FY max : 1000N Code: GCARO0000101 Serie: Accessori Motion Weight: 5.47kg Cad 2D Cad 3D Carrello per guida lineare Monorail130 Carrello per guida lineare Monorail180
