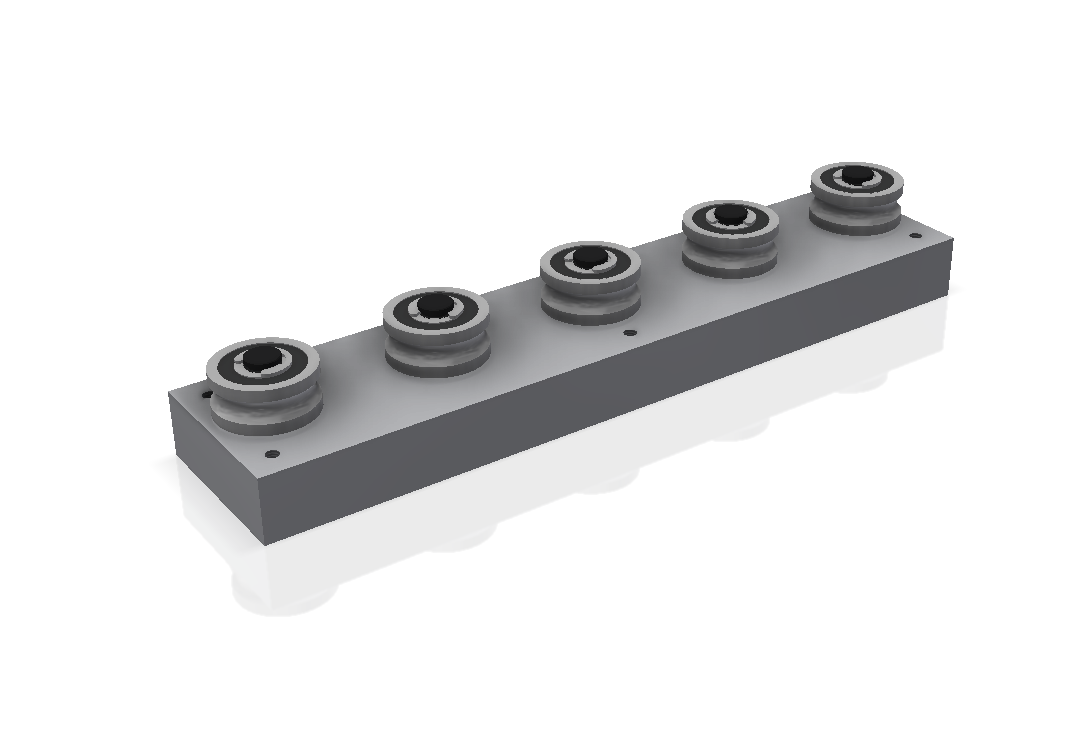

carriage for lienear guide - IL65/5

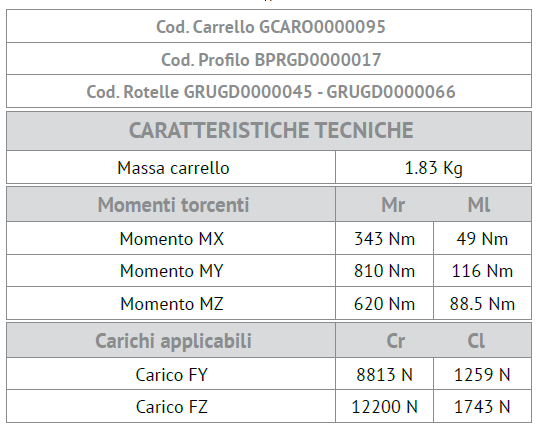

Description:

TORQUE


MX moment: mr 343Nm / ml 49Nm

moment MY: mr 810 Nm / ml 116 Nm

MZ moment: mr 620Nm / ml 88.5Nm

APPLICABLE LOADS

Charge FY: cr8813N / 1259N

FX load: cr 12200N / cl 1743N

Code:
GCARO0000095
Serie:
Accessori Motion
Weight:
1.83kg

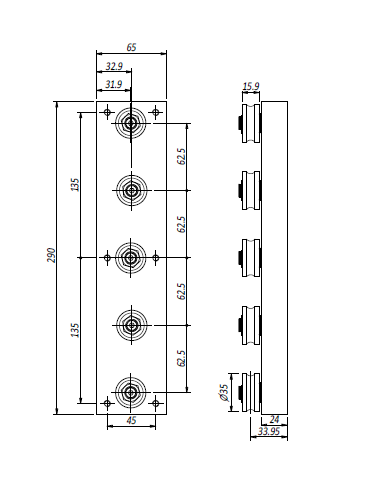

Cad 2D Cad 3D
Carrello per guida lineare - IL65/5
Carrello per guida lineare - MR65/3
