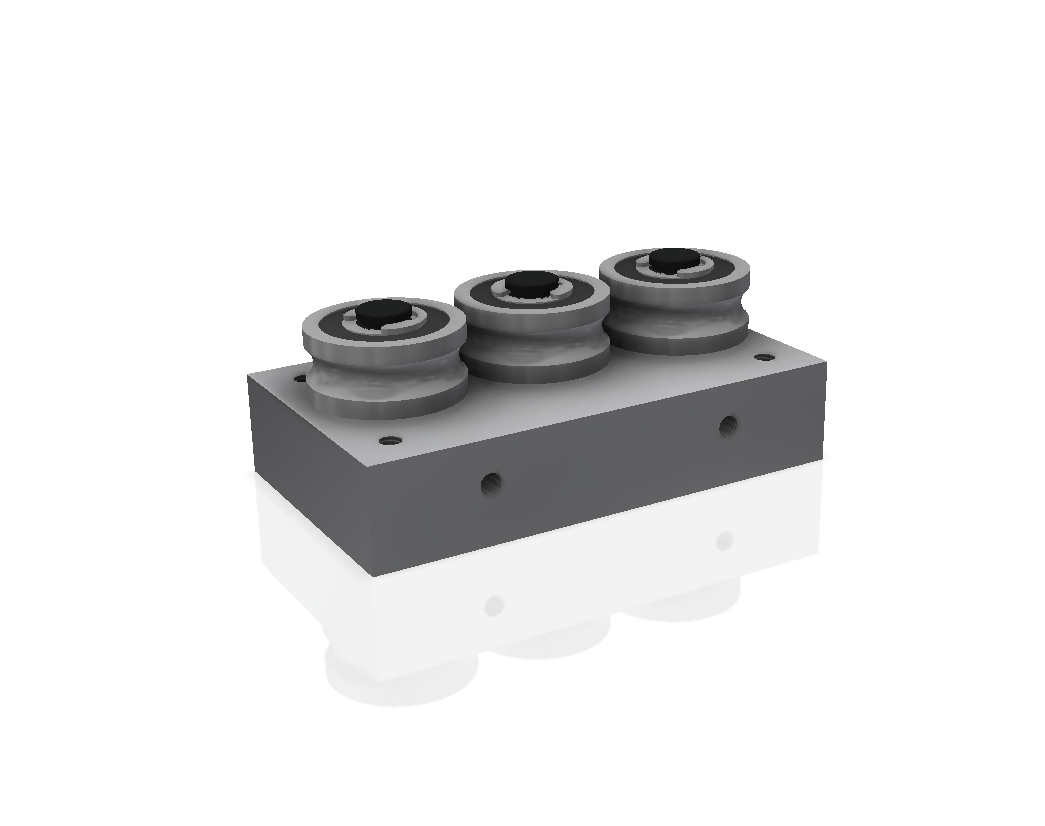

carriage for lienear guide - IL65/3

Description:

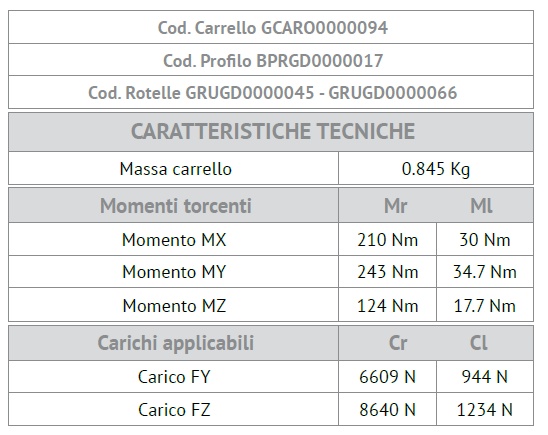

TORQUE


MX moment: mr 210 Nm / ml 30 Nm

moment MY: mr 243 Nm / ml 34.7 Nm

MZ moment: mr 124Nm / ml 17.7Nm

APPLICABLE LOADS

Charge FY: cr 6609N / 944N

FX load: cr 8640N / cl 1234N

Code:
GCARO0000094
Serie:
Accessori Motion
Weight:
0.845Kg

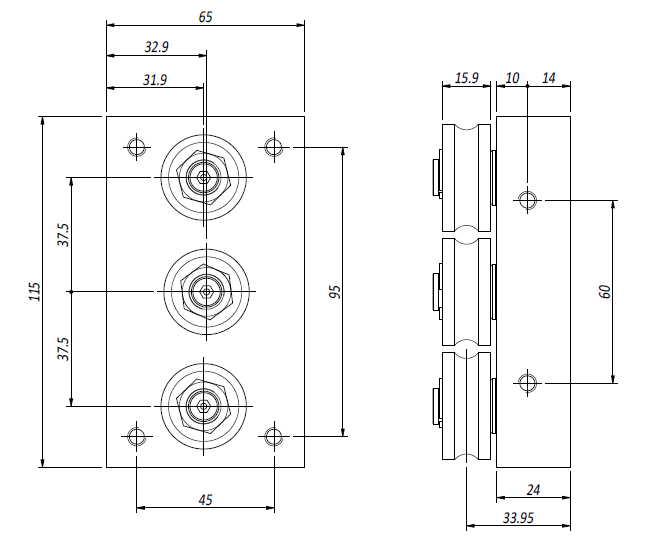

Cad 2D Cad 3D
Carrello per guida lineare - IL43C/5
Carrello per guida lineare - IL65/3
