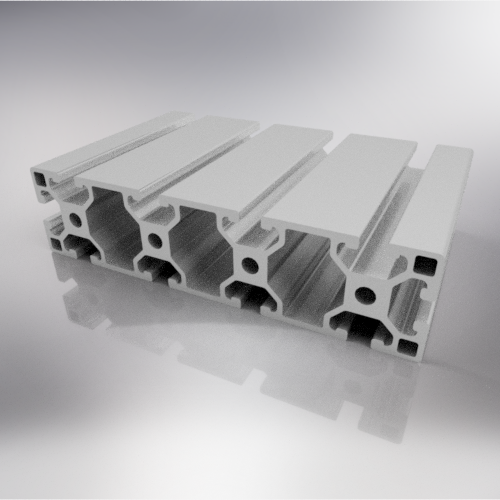

Profile 40x160 – 10 Ways light

Code:
BPRDD0000088
Old Code:
01.40160.L10A
Serie:
40
Area:
2043 mm2
Bar length:
6100 mm
Materiale:
LEGA EN AW 6060
Modulo di resistenza:
17,722 Wx/cm3 – 62,899 Wy/cm3
Moment of inertia:
35,546 Jx/cm4 – 503,196 Jy/cm4
Weight:
5,516 kg/ml
PROFILO 40x160 - 10 CAVE LEGGERO - BPRDD0000088

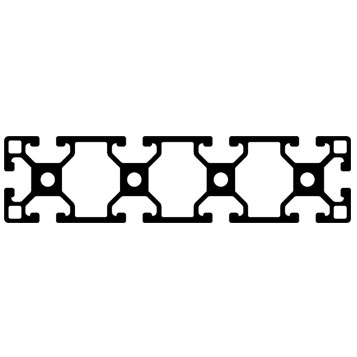

01_40160_L10A_SQ
Cad 2D Cad 3D
Serie 30-40-45

30-40-45 Series
