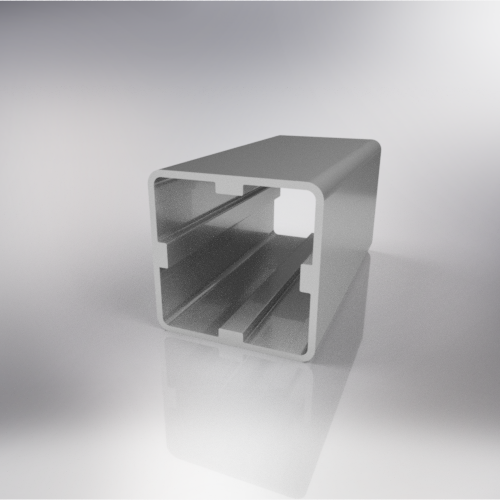

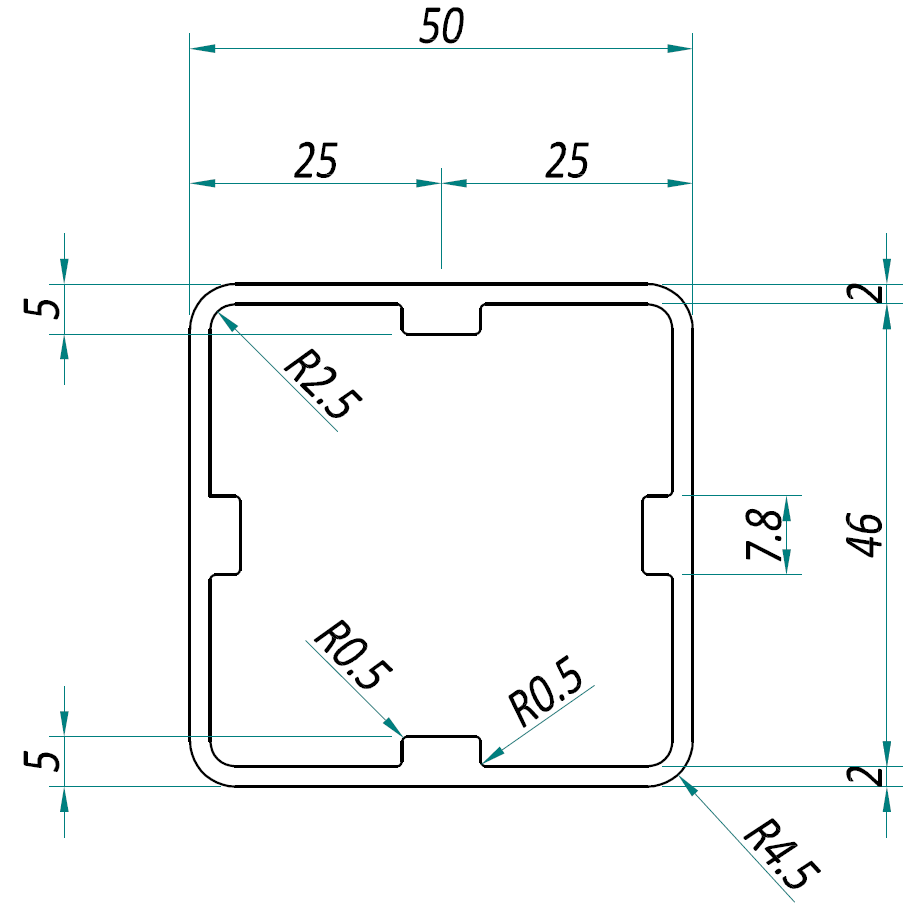

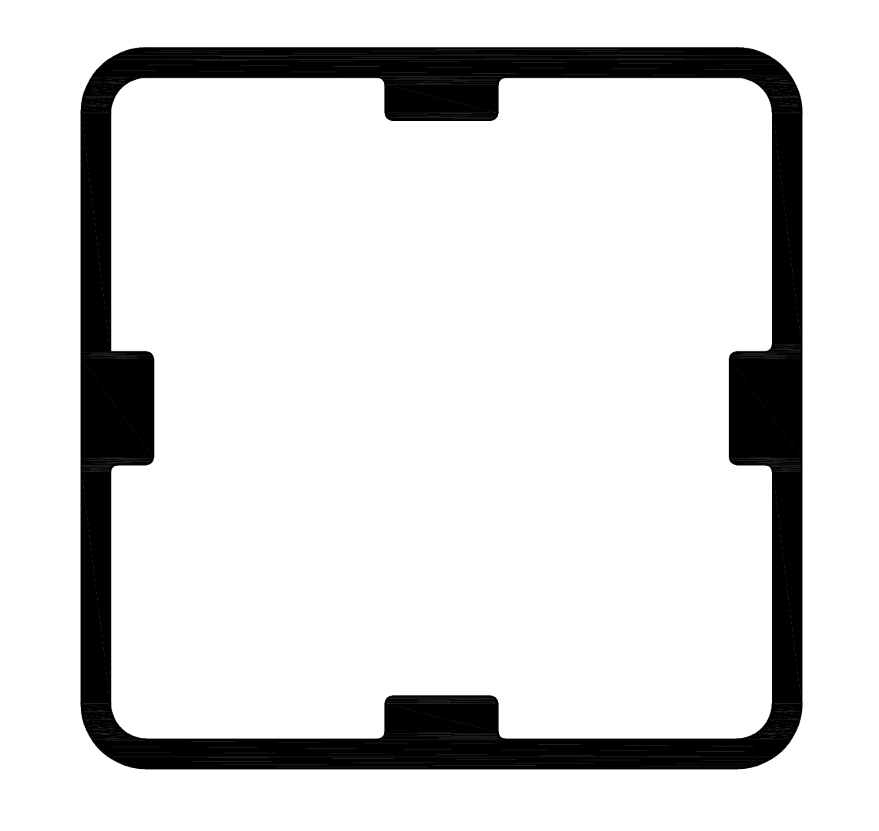

Telescopic Profile 50x50 L by 45x45

Code:

BPRQQ0000026

Serie:

45

Area:

466 mm2

Bar length:

6040 mm

Materiale:

Alloy EN AW 6060

Modulo di resistenza:

6493,05 Wx/mm3 – 6493,05 Wy/mm3

Moment of inertia:

162326,28 Jx/mm4 – 162326,28 Jy/mm4

Weight:

1,258 kg/ml

Profilo telescopico 50x50 L per 45x45 - BPRQQ0000026

PROF.TELESCOPICO 50X50 L PER 45X45

PROF.TELESCOPICO 50X50 L PER 45X45

Cad 2D Cad 3D
