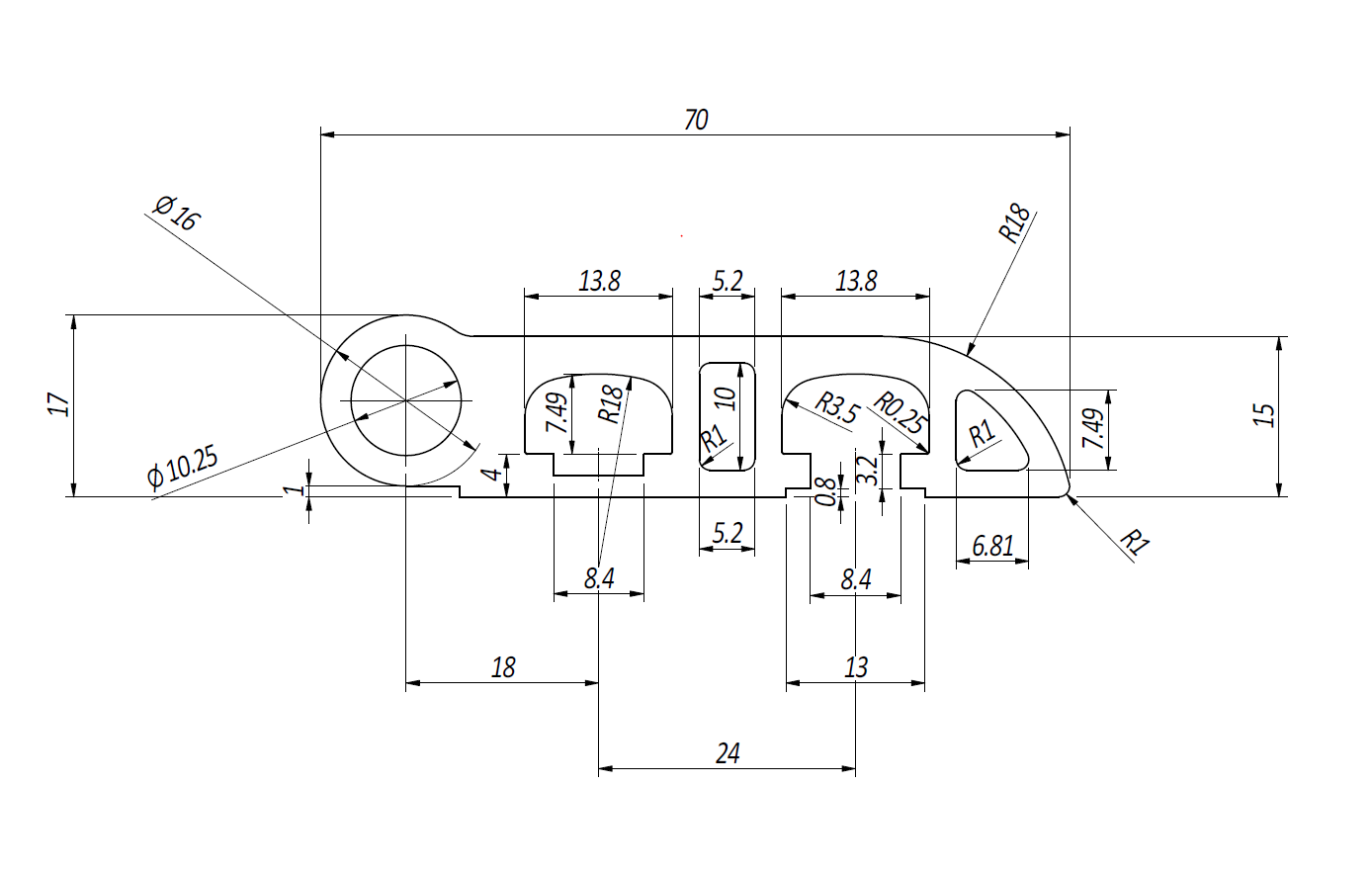

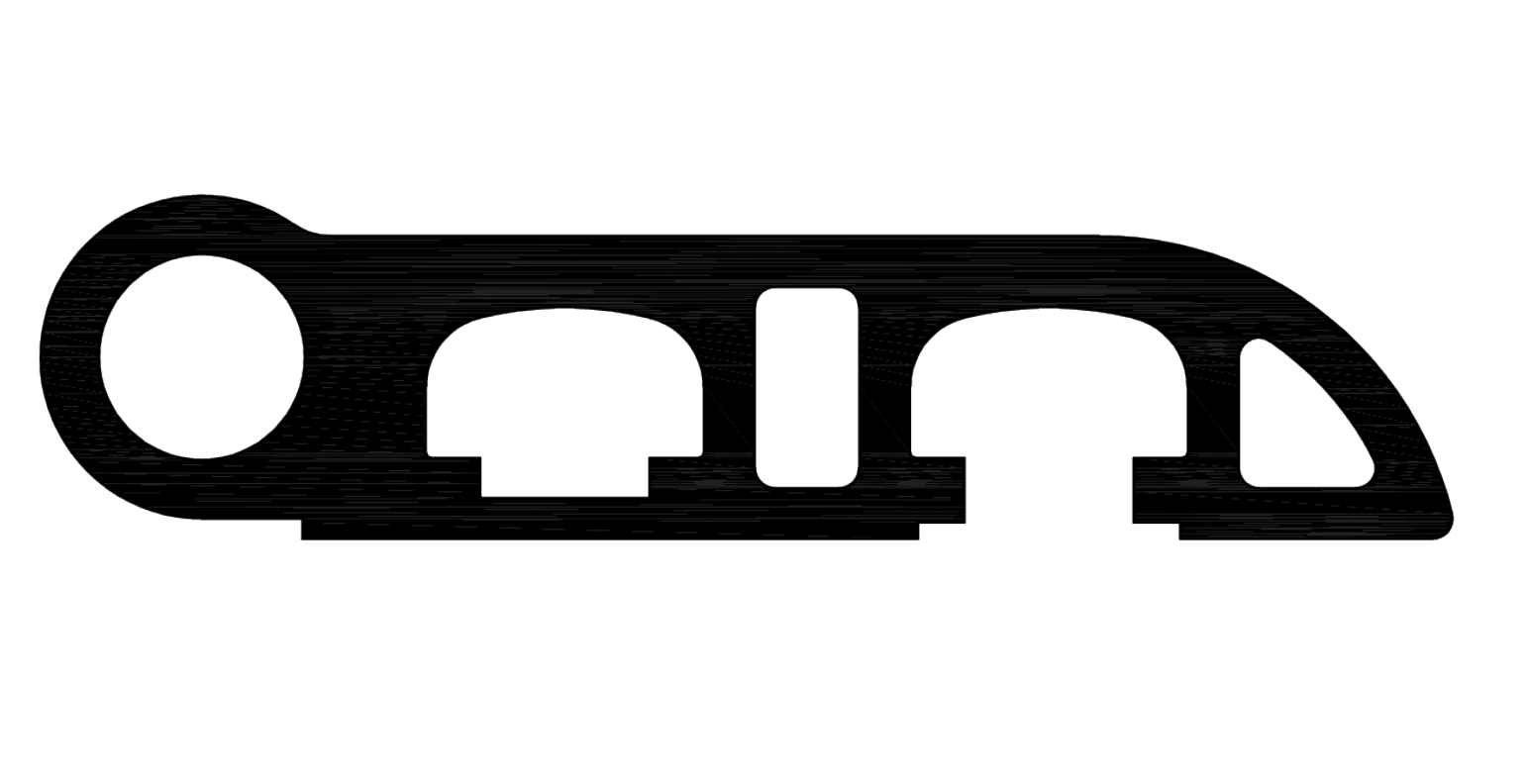

Profile for Hinge 70x17 SILVER

Code:
BPRCR0000027
Serie:
Complementary
Area:
5,572 cm2
Bar length:
6040 mm
Materiale:
ALLOY EN AW 6060
Modulo di resistenza:
25,222 Wx/cm3 – 0.399 Wy/cm3
Moment of inertia:
21,439 Jx/cm4 – 1,397 Jy/cm4
Weight:
1,5 Kg/ml
Profilo per cerniera 70×17 ARGENTO
Profilo per cerniera 70×17 ARGENTO
Profilo per cerniera 70×17 ARGENTO
Profilo per cerniera 70×17 ARGENTO
Cad 2D Cad 3D
PROF.TELESCOPICO 50x95 L PER 45X90
Profile for hinge 30x80
