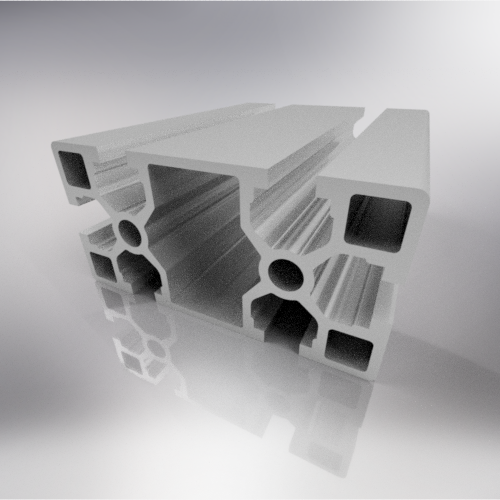

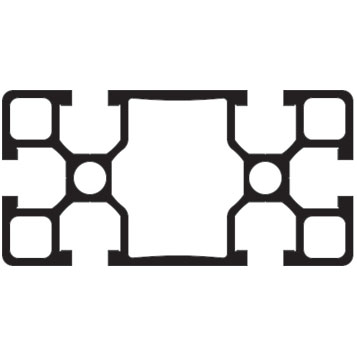

Profile 40x80 – 6 Ways series 45 Groove

Code:
BPRDD0000120
Old Code:
01.4080.L6A GOLA 45
Serie:
40
Area:
808,358 mm2
Bar length:
6050 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
7,329 Wx/cm3 – 13,7967 Wy/cm3
Moment of inertia:
14,658 Jx/cm4 – 55,187 Jy/cm4
Weight:
2,183 kg/ml
Profilo 40×80 – 6 cave gola serie 45 - BPRDD0000120
Profilo 40×80 – 6 cave gola serie 45

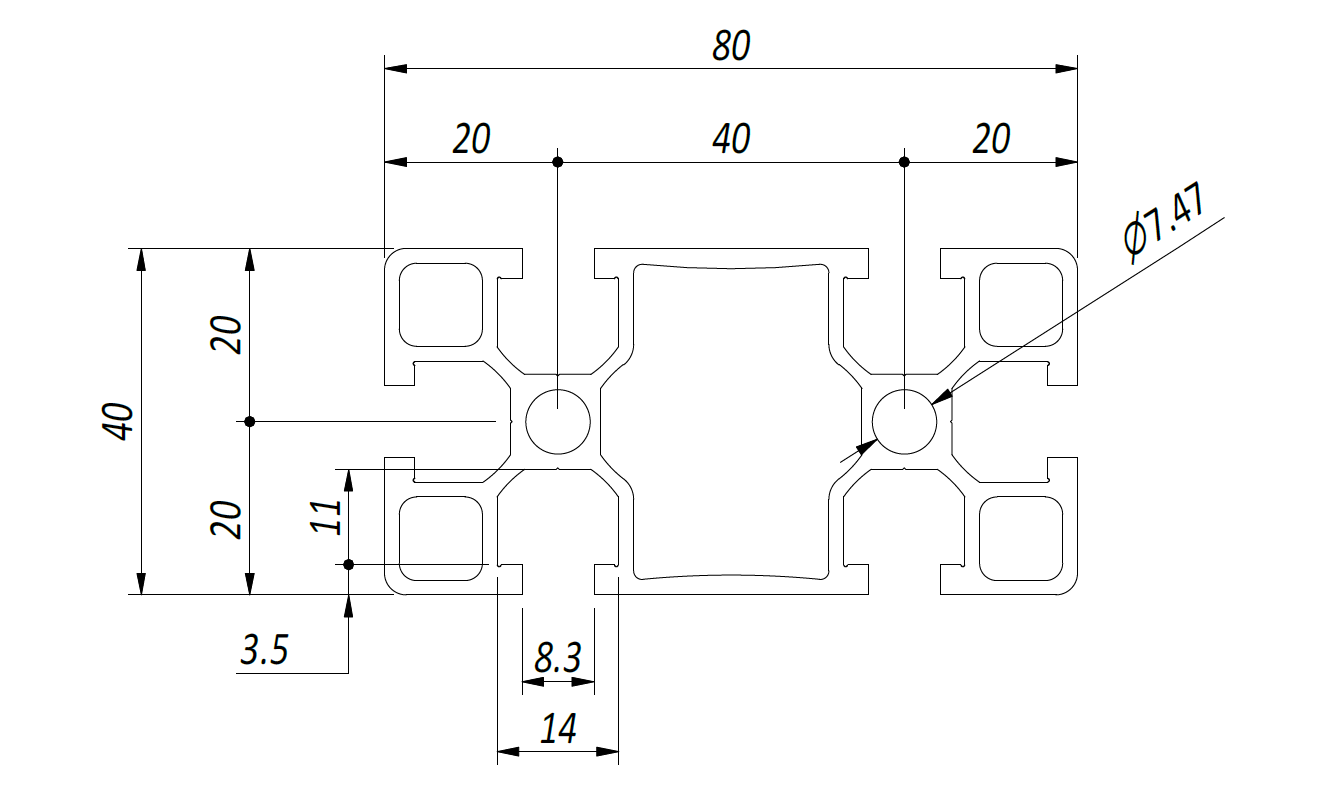

Cad 2D Cad 3D
