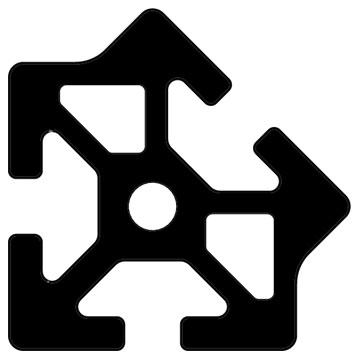

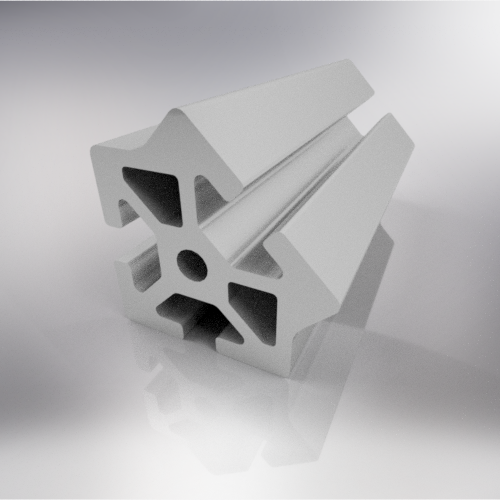

Profile 40x40 – 1 Side 45° – 3 Ways

Code:
BPRDD0000104
Old Code:
01.4040.P45A
Serie:
40
Area:
939 mm2
Bar length:
6100 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
5,852 Wx/cm3 – 5,853 Wy/cm3
Moment of inertia:
15,753 Jx/cm4 – 15,756 Jy/cm4
Weight:
2,535 kg/ml
Profilo 40×40 – 1 lato 45° – 3 cave - BPRDD0000104
Profilo 40×40 – 1 lato 45° – 3 cave
Profilo 40×40 – 1 lato 45° – 3 cave

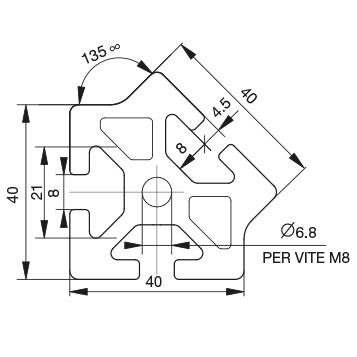

Cad 2D Cad 3D
