Profile 30x60 – 3 Ways

Code:
BPRDD0000067
Area:
577 mm2
Bar length:
6100 mm
Materiale:
LEGA EN AW 6060
Modulo di resistenza:
3,451 Wx/cm3 – 6,964 Wx/cm3
Moment of inertia:
5,317 Jx/cm4 – 21,184 Jy/cm4
Weight:
1,558 Kg/ml

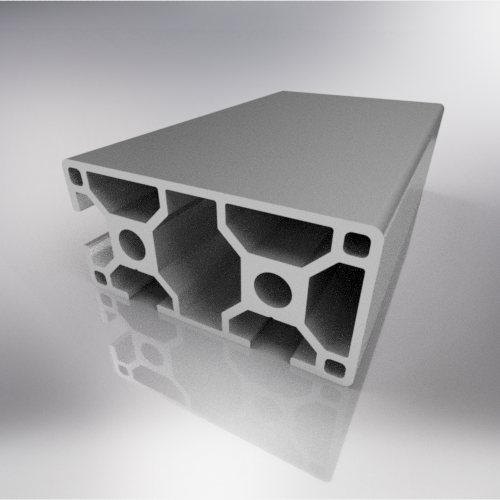

Profilo 30×60 – 3 cave - BPRDD0000067

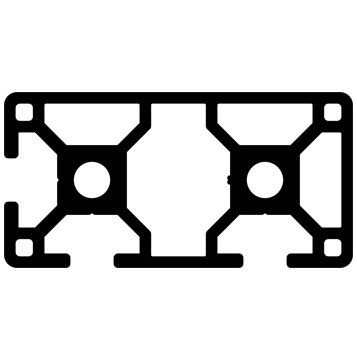

01_3060_3A_S

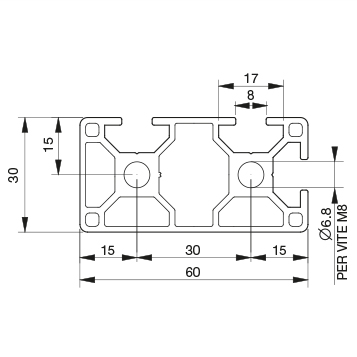

BPRDD0000067_ai
Profilo 30×60 – 3 cave - BPRDD0000067
01_3060_3A_S
BPRDD0000067_ai
Cad 2D Cad 3D
Profilo 30x60 – 3 cave
