  3. Linear guide profile - Round containment profile ø10
by name, code, series...

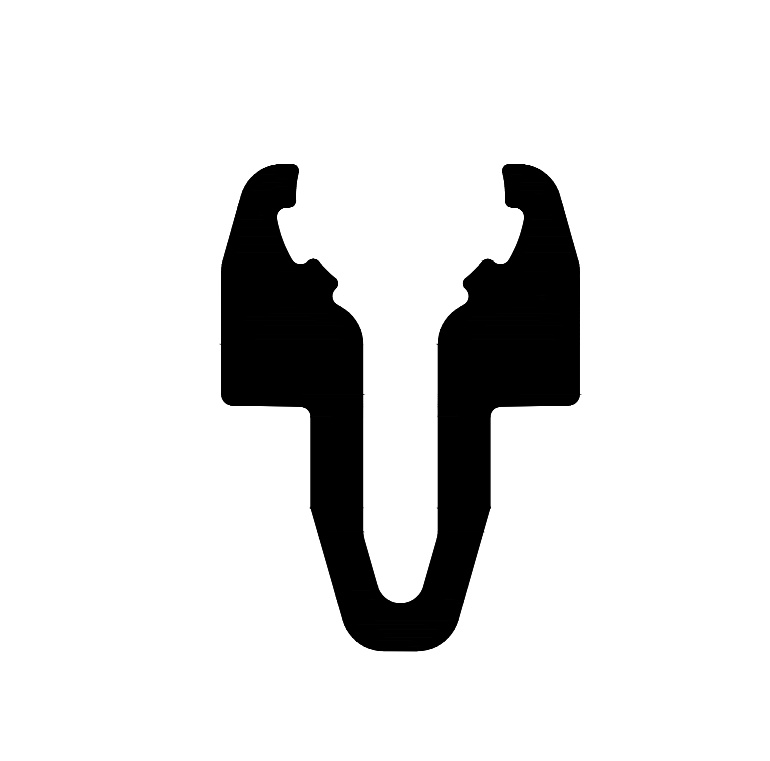

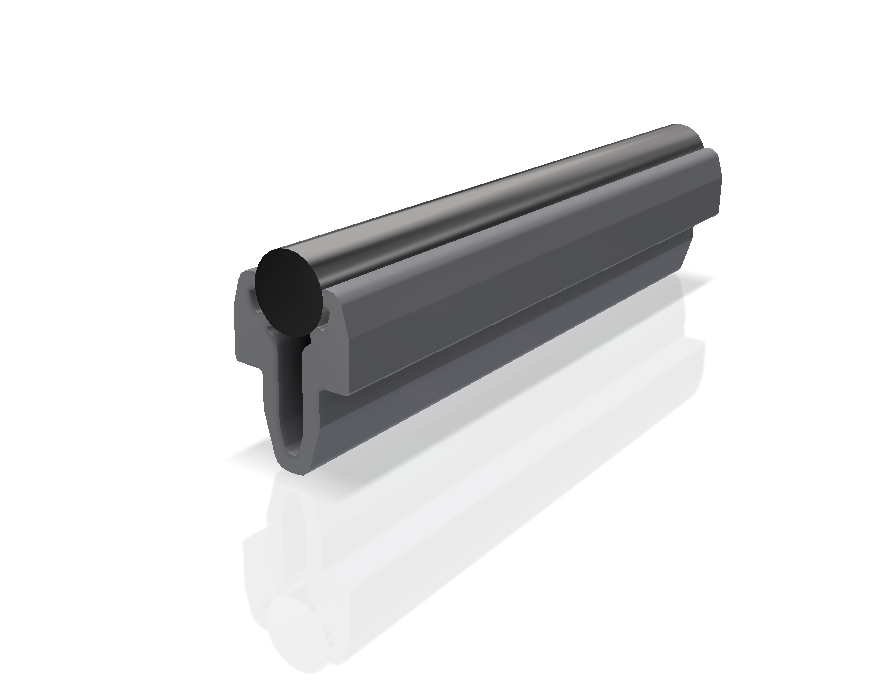

Linear guide profile - Round containment profile ø10

Description:

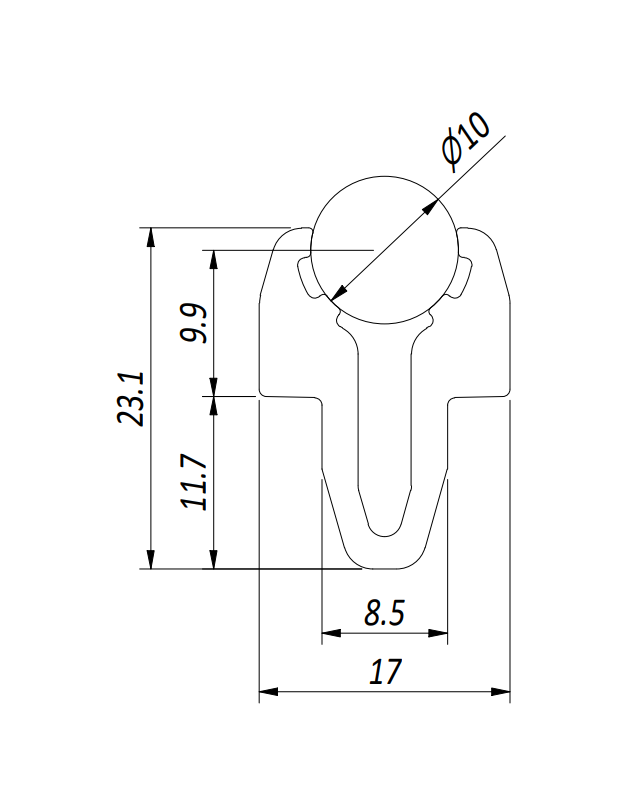

ENCUMBRANCE: y 17.00mm / z 26.70mm

Code:
BPRGD0000032
Serie:
Per Guide Lineari
Area:
160.23 mm2
Bar length:
5000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
0.53 Wz/cm3 – 0.46 Wy/cm3
Moment of inertia:
0.524 Jz/cm4 – 0.405 Jy/cm4
Weight:
0.432 kg/ml
Cad 2D Cad 3D
Profilo guida lineare - Profilo contenimento tondo ø10
Profilo guida lineare - Profilo contenimento tondo ø12
