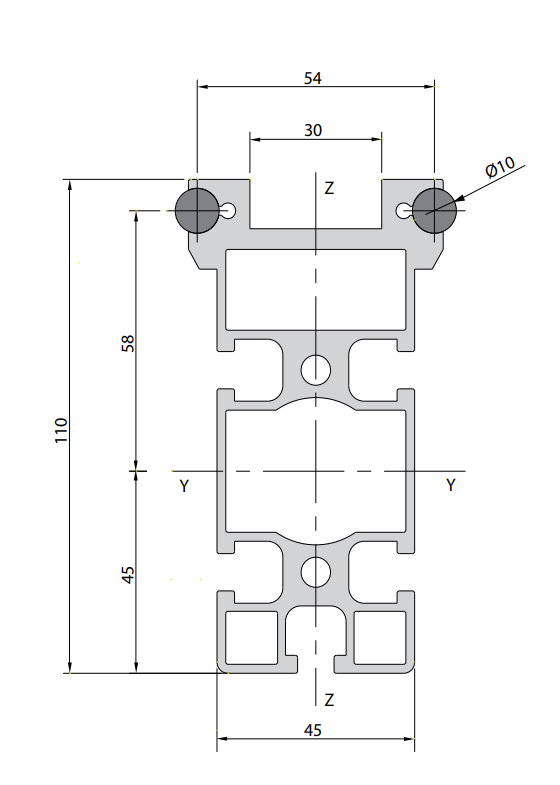

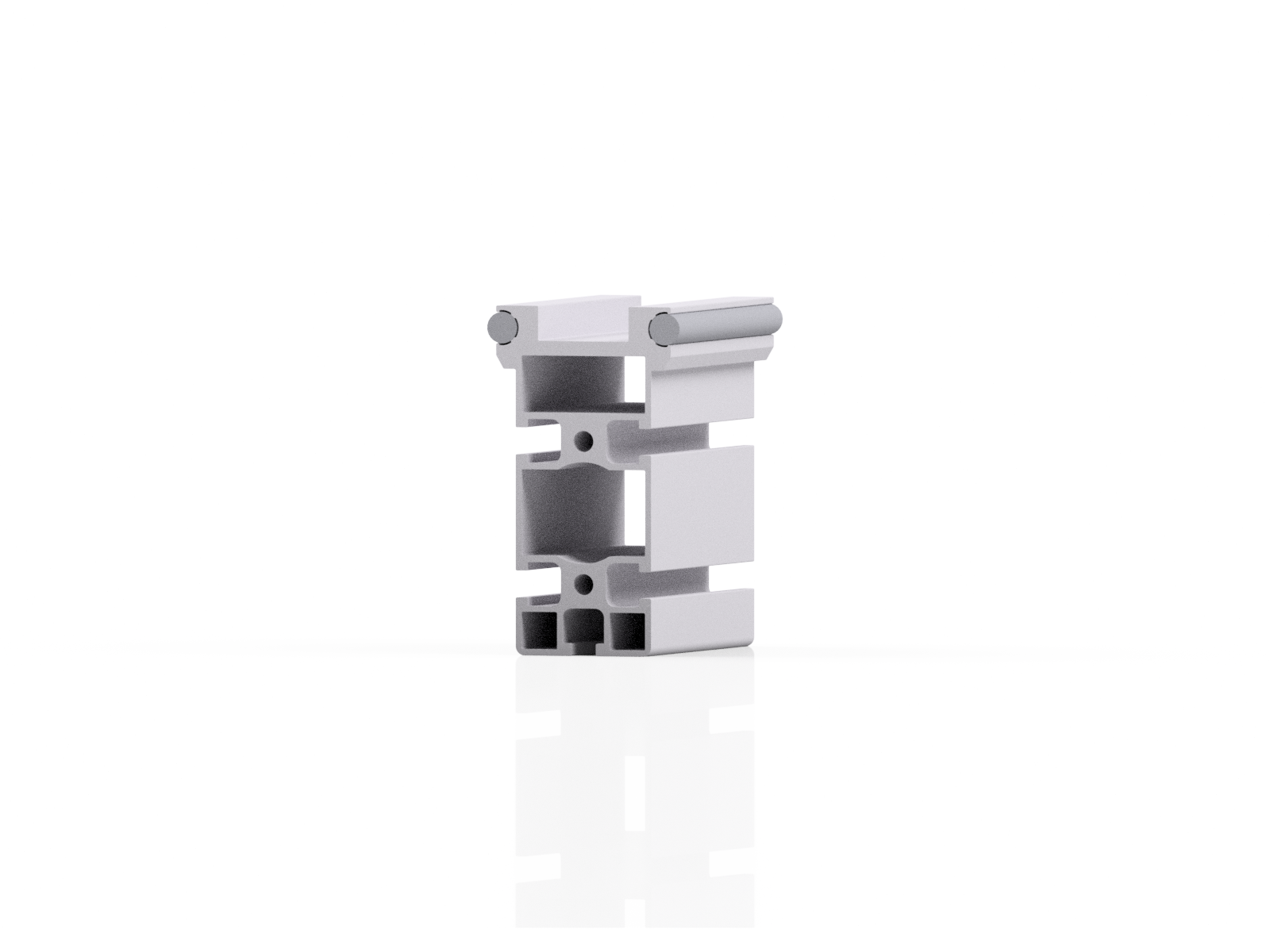

Linear guide profile - GDR10
Description:
ENCUMBRANCE: y 64.00mm / z 110.00mm
Code:
BPRGD0000027
Serie:
Per Guide Lineari
Area:
1715.11 mm2
Bar length:
6040 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
16.01 Wz/cm3 – 33.73 Wy/cm3
Moment of inertia:
51.22 Jz/cm4 – 219.23 Jy/cm4
Weight:
5.46 kg/ml
