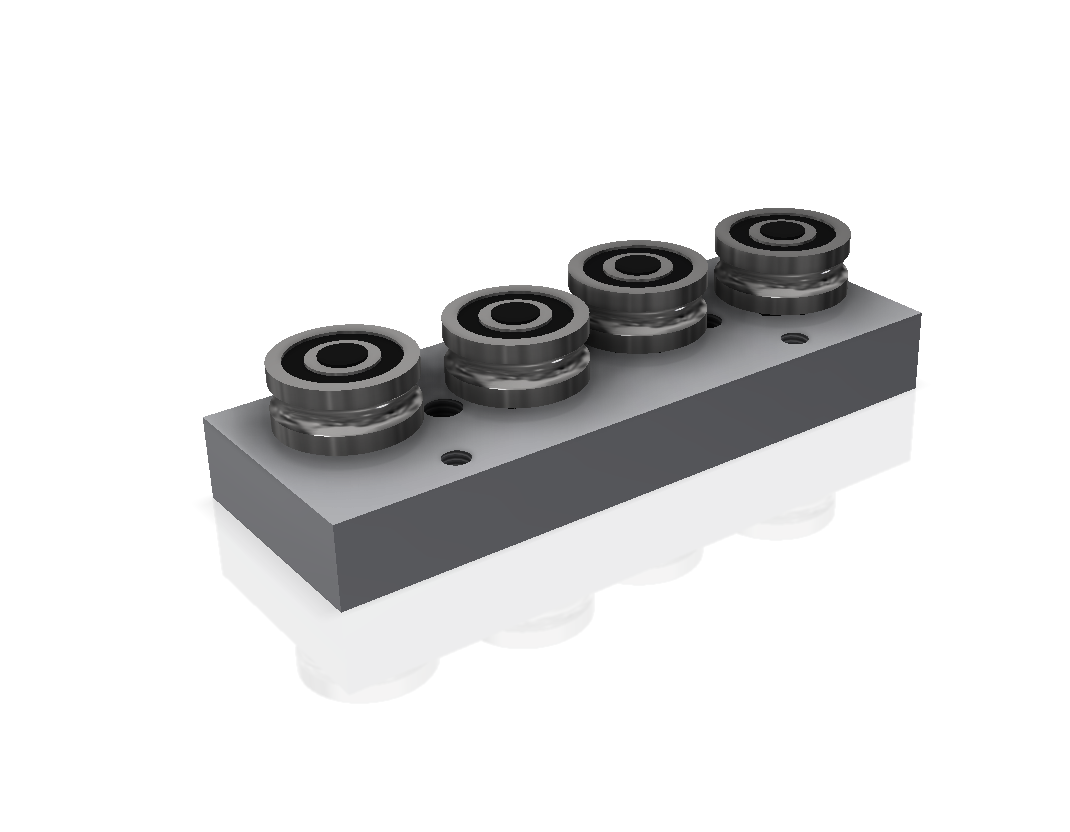

carriage for lienear guide - IL42/4

Description:

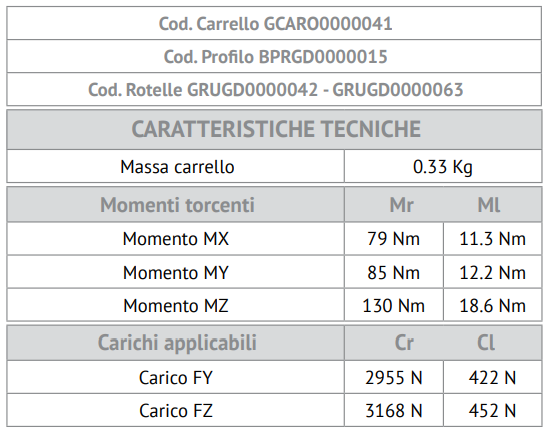

TORQUE

MX moment: mr 19Nm/ ml 11.3Nm

moment MY: mr 85 Nm / ml 12.2 Nm

MZ moment: mr 130 Nm / ml 18.6 Nm

APPLICABLE LOADS

FY load: cr 2955N / 422N

FX load: cr 3168N / cl 452N

Code:
GCARO0000041
Serie:
Accessori Motion
Weight:
0.33kg

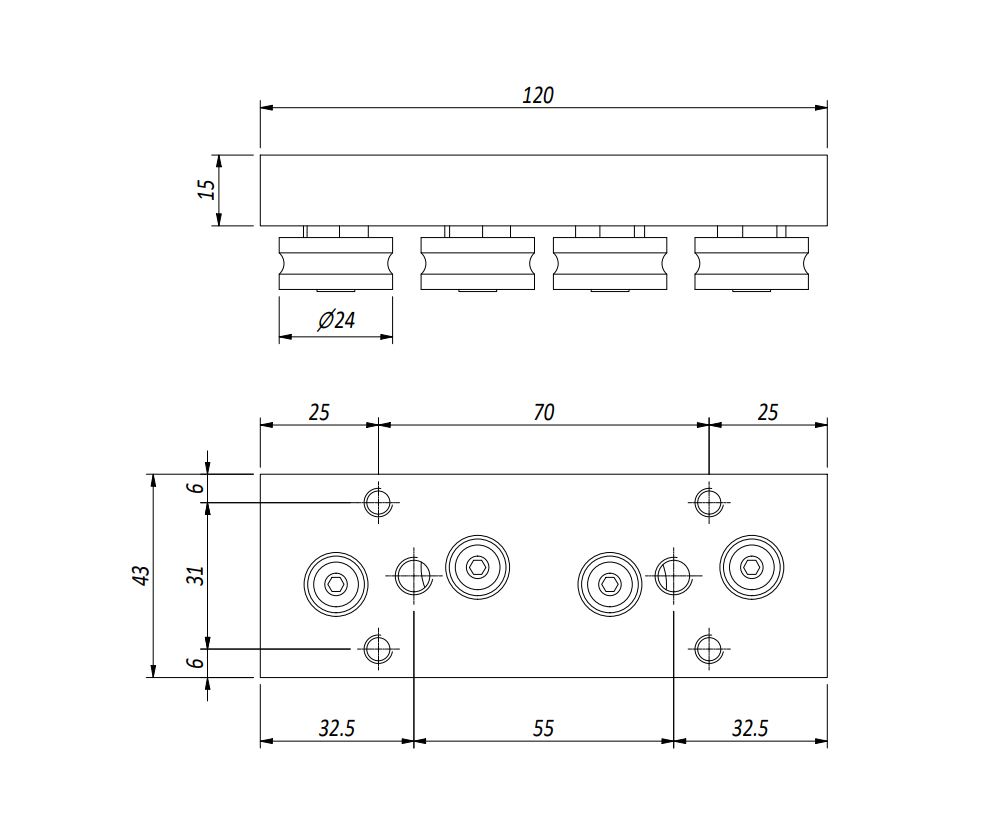

Cad 2D Cad 3D
